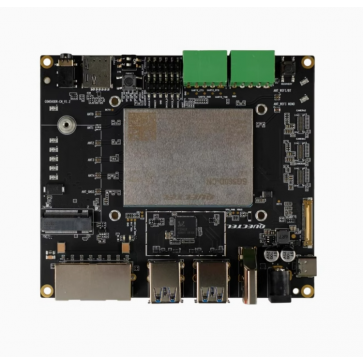

Quectel QSM560DR 5G Smart Control Board

* Quectel 5G Smart Board


* Based on Quectel SG560D 5G smart module


* Octa-core 1.9~2.7GHz CPU


* Adreno 643 GPU


* 12 TOPS NPU


* Support 5G/WiFi/Bluetooth/GNSS


* USB/Ethernet/RS232/RS485/CAN


* Support HDMI/eDP/MIPI CSI/SIM/SD


* Support Ubuntu/Android/Windows OS

Sign up for price alert

Availability: In stock

$549.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

Quectel QSM560DR series is a multi-network 5G smart control board based on the SG560D module platform, developed by Quectel. It features a Qualcomm QCM6490/QCS6490 octa-core 64-bit processor and an Adreno 643 GPU. This fully-featured ARM motherboard is equipped with a high-performance octa-core 64-bit processor, Adreno™ 643 high-performance graphics engine (GPU), and a 12 TOPS NPU for powerful edge computing capabilities and rich multimedia functions. It supports operating systems such as Ubuntu, Android, and Linux, and is compatible with multi-system integration, offering developers a wide range of flexible development options.

In terms of wireless connectivity, the QSM560DR series complies with the 3GPP R15 standard and supports 5G SA and NSA modes, as well as backward compatibility with 4G and 3G networks. It also integrates Wi-Fi 6E & DBS, Wi-Fi 2×2 MU-MIMO, and Bluetooth 5.2 technologies to ensure stable and high-speed connectivity under all conditions. Additionally, to better meet the positioning needs of terminal devices, this ARM motherboard integrates a multi-constellation GNSS receiver, supporting GPS, GLONASS, BDS, NavIC, Galileo, QZSS, and SBAS positioning systems, enabling fast and accurate location capabilities.

The Quectel QSM560DR series board is rich in functionality, significantly enhancing the stability and usability of devices. At the same time, to better meet the demands of a wide range of applications, this ARM motherboard integrates various interface options such as USB, Ethernet, RS232, RS485, CAN, and more. It also supports dual-screen display, digital microphone input, audio output, and multiple camera inputs, making it highly suitable for a wide array of smart edge computing scenarios such as robotics, smart retail, smart campuses, security monitoring, and industrial intelligence.

There are two versions of the 5G smart board: QSM560DR-CN and QSM560DR-WF.

Below are the specifications for Quectel QSM560DR-CN and QSM560DR-WF.


Quectel QSM560DR-CN (For China and India Market):
-------------------------------------------------------
* Platform: QCM6490

* 5G SA/NSA: n1/3/5/8/28/41/78/79

* 5G MIMO:
- 4 x 4 MIMO(DL): n1/41/78/79
- 2 x 2 MIMO(UL): n41/78/79

* LTE FDD: B1/3/5/8
* LTE TDD: B34/B38/39/40/41
* WCDMA: B1/5/8

* 5G SA Speeds: 2.1Gbps(DL)/900Mbps(UL)

* 5G NSA Speeds: 2.5Gbps(DL)/550Mbps(UL)

* LTE Speeds: 1.2Gbps(DL)/200Mbps(UL)

* DC-HSPA+: 42Mbps(DL)/5.76Mbps(UL)

* WCDMA: 384Kbps(DL)/384Kbps(UL)

* WLAN: 802.11a/b/g/n/ac/ax, DBS, 2 x 2 MU-MIMO, 2.4/5/6GHz


* CPU:
- Octa-core 5G SoC
- 1 x Gold Plus@2.7GHz + 3 x Gold@2.4GHz + 4 x Silver @1.9GHz


* GPU: Adreno 643@812MHz

* Storage: 4GB LPDDR4X + 64GB UFS(Default)

* OS: Ubuntu 20.04/Android 13/Windows

* Dimensions: 120.5 x 106 x 22.5mm

* NPU: 12 TOPS

* Weight: around 120g

* Working temperature: -35°C to 75 °C

* Approval: RoHS/REACH


Quectel QSM560DR-WF(For Global Market):
-------------------------------------------------------
* Platform: QCS6490

* 5G SA/NSA: N/A

* 5G MIMO: N/A

* LTE FDD: N/A
* LTE TDD: N/A
* WCDMA: N/A

* 5G SA Speeds: N/A

* 5G NSA Speeds: N/A

* LTE Speeds: N/A

* DC-HSPA+: N/A

* WCDMA: N/A

* WLAN: 802.11a/b/g/n/ac/ax, DBS, 2 x 2 MU-MIMO, 2.4/5/6GHz

* Bluetooth 5.2

* CPU:
- Octa-core 5G SoC
- 1 x Gold Plus@2.7GHz + 3 x Gold@2.4GHz + 4 x Silver @1.9GHz


* GPU: Adreno 643@812MHz

* Storage: 4GB LPDDR4X + 64GB UFS(Default)

* OS: Ubuntu 20.04/Android 13/Windows

* Dimensions: 120.5 x 106 x 22.5mm

* NPU: 12 TOPS

* Weight: around 120g

* Working temperature: -35°C to 75 °C

* Approval: RoHS/REACH


They both have the same features:

* Interfaces:
- eDP x 1, support display Port 1.4, maximum support 4K(3840 x 2160)@30fps
- HDMI x 1, HDMI 1080P@60Hz
- MIPI camera x 3
- Ethernet port x 2, 10/100/1000Mbps
- M.2 x 1, support external M.2 4G Module
- Video: encode 4K(H.264/H.265)@30fps, decode 4K(H.264/H.265)@30fps
- Audio: x 1, 3.5mm out port, only support Lineout
- USB: x 5(4 x USB 3.0 type-A port + 1 x USB type-C port)
- (U)SIM: x 1, support 1.8/2.95V(U)SIM card
- RS-485 x 1
- RS-232 x 2
- CAN x 1
- DMIC x 3
- GPIO x 10
- SD card x 1 , SD 3.0
- Antenna: x 7(radio x 4, WiFi/BT x 1, WiFi MIMO x 1 + GNSS x 1)
