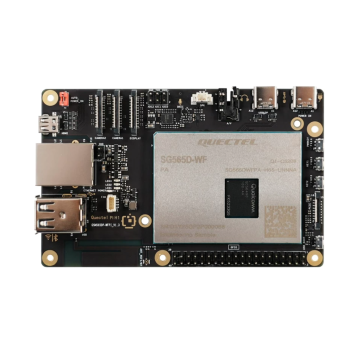

Quectel Pi H1 Smart Board

Quectel Pi H1 is an intelligent main control board launched by Quectel, based on the Qualcomm QCS6490 platform. It integrates a high-performance 64-bit octa-core processor (with up to 12 TOPS computing power) and a Qualcomm Adreno 643L GPU. It supports Yocto Linux/Debian/Ubuntu operating systems, features 8 GB of LPDDR4X memory, and uses a USB Type-C power interface. It supports external eMMC and SSD, dual-band Wi-Fi (2.4 & 5 GHz), complies with IEEE 802.11a/b/g/n/ac and Bluetooth 5.0 protocols, and supports dual display (DP and LCM, or DP and Micro HDMI). With its powerful performance and rich multimedia functions, it can meet customers' demands for high-speed data, multimedia capabilities, and computing power in industrial and consumer applications.

Key Advantages:
-----------------------------------------
* Powerful Computing: Up to 12 TOPS of computing power, meeting the needs of most algorithm prototype verification and inference application development.

* Rich Interfaces: USB, Micro HDMI, ADC, audio, Ethernet, camera, PCIe, antenna, etc.

* Dual Display Support: DP and LCM, or DP and Micro HDMI.

* Wireless Connectivity: Wi-Fi 5 (802.11a/b/g/n/ac), providing a more efficient wireless connection experience.

* Multiple Operating Systems: Yocto Linux / Debian / Ubuntu.

* Wide Temperature Operation: Adapts to environments from -20°C to +70°C, enhancing suitability for outdoor and industrial scenarios.

* Diverse Application Scenarios: Edge computing, robotics, industrial control, multimedia terminals, digital signage, smart security, and industrial PDAs.

Quectel Pi H1 Smart Board Specifications:

Application Processor
-----------------------------------------
* High-performance 64-bit octa-core processor (up to 12 TOPS computing power)
* 1 x A78 @ 2.7 GHz + 3 x A78 @ 2.4 GHz + 4 x A55 @ 1.9 GHz
* 32 KB L1I cache, 32 KB L1D cache, and 512 KB L2 cache

GPU
-----------------------------------------
Adreno(TM) 643L @ 812 MHz

Memory
-----------------------------------------
8 GB LPDDR4X + 128 GB UFS

Operating System
-----------------------------------------
Yocto Linux/ Debian/ Ubuntu*

USB Interface
-----------------------------------------
* 1 x USB 3.1 Type-C interface, compatible with USB 2.0, max data transfer rate 5 Gbps
* 2 x Standard USB 2.0 Type-A interface, host mode only, max data transfer rate 480 Mbps
* 1 x USB Type-C interface, host power supply interface

Display
-----------------------------------------
* 1 x USB Type-C interface (DP Over USB Type-C), DisplayPort 1.4, up to 4K (3840 x 2160) @ 60 fps

Interface
-----------------------------------------
* 1 x Micro HDMI interface(1), HDMI 2.0 (frame rate TBD*), Decode: 4K (H.264/ H.265/ VP9) @ 60 fps
* 1 x FPC connector(1), 4-lane MIPI DSI D-PHY 1.2, 1280 x 800 @ 60 fps

Audio Interface
-----------------------------------------
* 1 x 3.5 mm headphone jack, national standard, American standard audio output interface
* 1 x Micro HDMI interface, audio output
* 1 x On-board DMIC
* 1 x Speaker interface

Camera Interface
-----------------------------------------
2 x FPC connectors, 4-lane MIPI CSI, max data rate 2.5 Gbps/lane

Ethernet Interface
-----------------------------------------
1 x Standard RJ45 interface, 10/100/1000 Mbps communication speed Ethernet
PCIe Interface 1 x FPC connector, 1-lane PCIe 3.0, max data rate 8 GT/s x 1 lane

SD Card Interface
-----------------------------------------
1 x SD 3.0, 4-bit SDIO

UART Interface
-----------------------------------------
1 x DBG_UART interface, for debugging only

ADC Interface
-----------------------------------------
3 x ADC pins, max input voltage 1.8 V

Expansion Interface
-----------------------------------------
6 x I2C Interface (multiplexed with other interfaces)
1 x I2S Interface (multiplexed with other interfaces)
4 x SPI Interface (multiplexed with other interfaces)
4 x UART Interface (multiplexed with other interfaces)
3 x PWM Interface (multiplexed with other interfaces)
28 x GPIO Interface (multiplexed with other interfaces)
1 x SDIO Interface (switchable)

Button Interface
-----------------------------------------
1 x PWRKEY, Power button, internal pull-up
1 x KEY1, Function button, user-definable function
1 x KEY2, Function button, user-definable function
1 x USB_BOOT, Function button, forces product into download mode

LED Indicator
-----------------------------------------
Red, Blue, and Green

Antenna Interface
-----------------------------------------
1 x Wi-Fi/Bluetooth PCB onboard antenna
1 x RF Coaxial Connector (ECT818000500), can be used with ECT 818003008 RF coaxial cable

WLAN
-----------------------------------------
2.4 GHz & 5 GHz
IEEE 802.11a/b/g/n/ac

Bluetooth: 5.0

Temperature Range
-----------------------------------------
Normal Operating Temperature: -20 °C ~ +70 °C
Storage Temperature: -40 °C ~ +85 °C

Power Supply Requirements
-----------------------------------------
USB Type-C power supply. Please select a power adapter that supports PD protocol and 9 V/3 A or 5 V/ 5 A output power.

Shielding Cover
-----------------------------------------
None

Firmware Upgrade
-----------------------------------------
USB
OTA*

RoHS
-----------------------------------------
All components fully comply with EU RoHS standards.

Package content:
* 1 x Quectel QSM565DPWFPA-8H128-Pi-H1 board
* 1 x Quectel Pi-H1-ACC board
* Accessories
