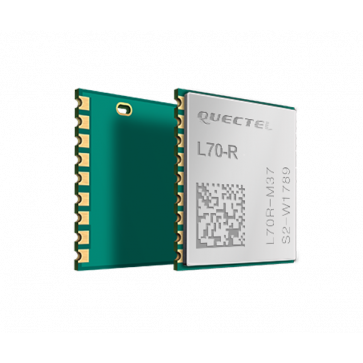

Quectel L70-R GPS Module

Quectel L70-R, a low-cost ROM-based GPS module, brings the high performance of MTK positioning engine to the industrial applications with a compact profile, ultra-low power consumption and fast positioning capability.

Combining advanced AGPS called EASY™ (Embedded Assist System) technology, Quectel L70-R achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures Quectel GPS L70-R can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L70-R GPS Module can fix position quickly even at indoor signal levels with low power consumption.

With its compact design, high precision and sensitivity, Quectel L70-R is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA.

Key Benefits

* Extremely compact size: 10.1mm × 9.7mm × 2.5mm

* Cost efficient for ROM-based version

* Ultra low power consumption in tracking mode, 13mA

* EASY™, an advanced AGPS technology without external memory

* High sensitivity: -165dBm @Tracking, -148dBm @Acquisition

* 66 acquisition channels, 22 tracking channels

* Support QZSS

* Balloon mode, for high altitude up to 80km

* PPS VS. NMEA can be used for time service

* Great anti-jamming performance due to multi-tone active interference canceller

Quectel GPS L70-R Module Specifications:

* GPS Features

- L1 Band Receiver (1575.42MHz):
> Channel: 22(Tracking)/ 66 (Acquisition)
> C/A Code

- Horizontal Position Accuracy:
> Autonomous: <2.5m CEP

- Velocity Accuracy:
> Without Aid: <0.1m/s

- Acceleration Accuracy:
> Without Aid: <0.1m/s2

- Timing Accuracy:
> 1PPS Out: 10ns

- Reacquisition Time: <1s

- TTFF @-130dBm with EASY:
> Cold Start: <15s
> Warm Start: <5s
> Hot Start: <1s

- TTFF @-130dBm without EASY:
> Cold Start: <35s
> Warm Start: <30s
> Hot Start: <1s

- Sensitivity:
> Acquisition: -148dBm
> Tracking: -165dBm
> Reacquisition: -160dBm

- Dynamic Performance:
> Maximum Altitude: Max. 18000m
> Maximum Velocity: Max. 515m/s
> Maximum Acceleration: 4G

* Interfaces

- Serial Interfaces:
> UART: Adjustable 4800bps~115200bps
> Default: 9600bps

- Update Rate:
> 1Hz (Default), up to 5Hz

- I/O Voltage:
> 2.7V~2.9V

- Protocols:
> NMEA 0183
> PMTK

* General Features

- Temperature Range: -40°C ~ +85°C

- Dimensions:10.1mm × 9.7mm × 2.5mm

- Weight: Approx. 0.6g

- Power Supply: 2.8V~4.3V

- Power Acquisition: 16mA

- Power Tracking: 13mA

- Power Saving:

> 500uA @Standby Mode
> 8uA @Backup Mode

- Antenna Type: Active or Passive

- Antenna Power: External or Internal VCC_RF
