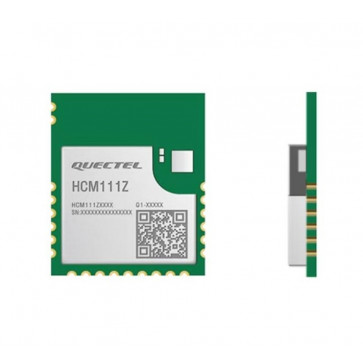

Quectel HCM111Z Bluetooth Module

Quectel HCM111Z is a cost-effective MCU Bluetooth module introduced by Quectel. It features a Cortex-M3 processor with a high clock speed of up to 48 MHz and supports BLE 5.3, providing a maximum data rate of 2 Mbps. It is equipped with 48 KB of SRAM and 512 KB of flash memory.

Quectel HCM111Z comes in a surface-mount LCC package with an extremely compact form factor measuring 15.0mm x 12.0 mm x 2.25 mm. This compact package size maximally satisfies the demand for small-sized module products in end-user applications and is compatible with a variety of structural designs.

Quectel HCM111Z Module Specifications:

* Bluetooth Protocol: BLE 5.3

* Encryption mode: TRNG, AES128 ECB

* Working mode: BLE

* Internal core: ARM Cortex-M3(up to 48MHz)

* SRAM: 48KB

* Flash: 512KB

* Dimensions: 15.0mm x 12.0mm x 2.25mm

* Weight: 0.62g

* Working temperature: -40°C ~ +85°C

* Storage temprerature: -45°C ~ +95°C

* Approvals: SRRC/CE/FCC/IC/KC/RCM

* Interfaces: UART/SPI/I2C/ADC/PWM etc..

* Voltage: 1.8~4.3V, typ 3.3V
