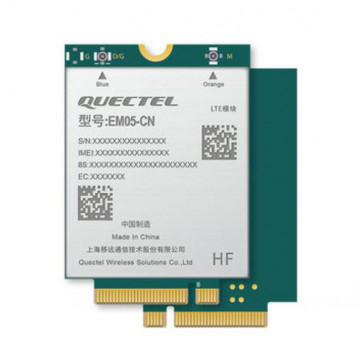

Quectel EM05-CN 4G LTE Cat.4 M.2 Module(EM05CNFD-128-LCCN)

Quectel EM05-CN LTE Cat4 Module Specifications:

* Product type: 4G IoT/M2M Module

* Target market: China

* Form factor: M.2

* Category: LTE Cat4

* LTE DL 150Mbps, UL 50Mbps

* Support LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA and CDMA etc...

* Frequency Bands:
- LTE FDD: B1/B3/B5/B8
- LTE TDD: B34/B38/B39/B40/B41
- WCDMA: B1/B5/B8
- EVDO/CDMA: BC0
- GNSS: GPS/GLONASS/BDS/Galileo/QZSS

* Speeds:
- LTE FDD: 150Mbps DL/50Mbps UL
- LTE TDD: 130Mbps DL/30Mbps UL
- DC-HSPA+: 42Mbps DL/5.76Mbps UL
- WCDMA: 384Kbps DL/384Kbps UL
- EDGE: 3.1Kbps DL/1.8Kbps UL
- GPRS: 307.2Kbps DL/307.2Kbps UL

* Interfaces:
- (U)SIM/eSIM: x 1
- USB 2.0 x 1
- Control and indicators: x 4, w_disable1#, led#, WOWWAN#, DPR
- Antenna: x 2, Main, Rx-diversity/GNSS

* Working temperature: -30°C ~ +75°C

* Extended Temperature: -40°C ~ +85°C

* Support Windows 7/8/8.1/10/11, Linux, Android OS

* Dimensions: 30.0 x 42.0 x 2.3mm

* Drivers:
- Protocols: QMI/MBIM/NITZ/HTTP/HTTPS/FTP
- USB MBIM Driver: Window 10/11, Linux 3.18-5.4
- USB Serial Driver: Window 7/8/8.1/10/11, Linux 2.6/3.x/4.1-4.14

* Power Supply Voltage: 3.135V-4.4V, 3.3V Typ.

* Approvals
- Regulatory: SRRC/NAL/CCC
- Others: WHQL/RoHS Compliant
