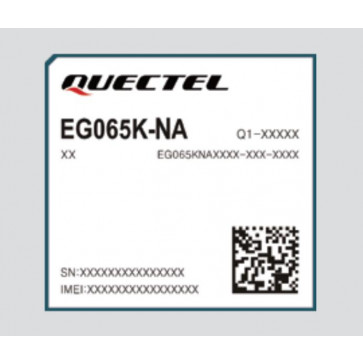

Quectel EG065K-NA LTE Cat6 LGA Module

Quectel EG065K-NA LGA 4G LTE Cat6 Module Specifications：

* Product type: 4G LTE Module

* Category: LTE Cat6

* Chipset:

* Form factor: LGA

* Dimensions: 28.0 × 31.0 × 2.4mm

* Frequency Bands:

- LTE-FDD Bands: B2/B4/B5/B7/B12/B13/B14/B25/B26/B30/B66
- WCDMA Bands: B2/B4/B5

* Target Market: United States

* Weight：5.3g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- LTE-FDD: Max. 300Mbps (DL)/ Max. 50Mbps (UL)
- DC-HSPA: Max 42Mbps(DL)/HSUPA: Max 5.76Mbps(UL)
- WCDMA: Max. 384Kbps (DL)/ Max. 384Kbps (UL)

* SMS

* Protocols: QMI/MBIM/NITZ/HTTP/HTTPS/FTP/LWM2M*/PING*

* Interfaces:
- USB 2.0/3.0
- PCM
- I2S x 1
- SPI x 1
- I2C x 1
- (U)SIM x 2, 1.8V/3.0V
- eSIM: N/A
- GPIO x 3
- RFFE x 1
- GRFC x 4
- UART x 3
- ADC x 2
- SD Card
- Reset_N x 1
- PCIe: optional
- Antenna: Main antenna x 2, Diversity antenna x 2

* Enhanced Features
- MIMO: 2 x 2, 4 x 2, DL
- eCall: Emergency Service
- Audio: optional
- VoLTE：Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- FOTA: N/A
- GNSS: N/A
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.3V~4.5V, 3.8V Typ.
- Power Consumption
> 24 μA@Power off
> 2.1mA@Sleep(PF=128)
> 2.8mA@Sleep(PF=64);
> 9.2mA@Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10
> Linux 2.6-5.12,
> Android 4.x-11.x
- RIL Driver: 4.x-11.x
- NDIS Driver: Windows 7/8/8.1/10
- RNDIS Driver: N/A
- ECM Driver: Linux 2.6-5.12
- Gobinet Driver: Linux 2.6-5.12
- QMI_WWAN Driver: Linux 2.6-5.12

* Certifications/Approvals: GCF*/FCC*/IC*/PTCRB*/IFETEL*/AT&T*/Firstnet*/ Verizon*/Telus

* Applications: router, MiFi, home gateway, Set-top Box, PDA, tablet PCs etc...
