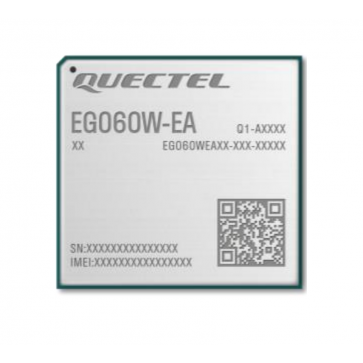

Quectel EG060W-EA 4G LTE-A Cat6 module

Quectel EG060W-EA is an LTE-A Cat 6 module specially optimized for M2M and IoT applications. Adopting the 3GPP Release 10 LTE technology, it delivers 300Mbps downlink and 50Mbps uplink peak data rates. Designed in an LGA form factor, EG060W-EA is compatible with Quectel EG06 series and EG060V-EA module (Cat 6), which facilitates designing and upgrading your own product more rapidly and flexibly.

Equipped with a rich set of internet protocols and multiple integrated application interfaces, EG060W-EA supports a wide range of drivers and software functionalities (e.g., USB drivers for Windows, Linux and Android), all of which make EG060W-EA extensively applied to various M2M and IoT applications such as industrial routers (include MiFi/CPE), home gateways, set-top boxes, PDAs, rugged tablet PCs and digital signage.

Quectel EG060W-EA LGA 4G LTE Cat6 Module Specifications：

* Product type: 4G LTE Module

* Category: LTE Cat6

* Target Market: EMEA, APAC, Brazil

* Chipset:

* Form factor: LGA

* Dimensions: 37.0 × 39.5 × 3.05mm

* Frequency Bands:

- LTE-FDD Bands: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32
- LTE-TDD Bands：B38/ 40/ 41
-2CA
B1 + B1/ 3/ 5/ 7/ 8/ 20/ 28;
B3 + B3/ 5/ 7/ 8/ 20/ 28;
B7 + B5/ 7/ 8/ 20/ 28;
B20 + B32
B38 + B38; B40 + B40; B41 + B41
- WCDMA Bands: B1/ 5/ 8

* Weight: 8.2g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- LTE-FDD: Max. 300Mbps (DL)/ Max. 50Mbps (UL)
- LTE-TDD: Max. 220Mbps (DL)/ Max. 30Mbps (UL)
- DC-HSPA: Max 42Mbps(DL)/HSUPA: Max 5.76Mbps(UL)
- WCDMA: Max. 384Kbps (DL)/ Max. 384Kbps (UL)

* SMS

* Protocols: PPP*/TCP*/UDP*/FTP*/HTTP*/SSL*/HTTPS*/NTP*/PING*/MMS*/SMTPS*/FTPS*/SMTP*

* Interfaces:
- (U)SIM (1.8/3.0 V) x 1
- UART x 2
- PCIe × 2, PCIe Gen 2, for Wi-Fi
- SDIO x 1
- I2C x 1
- SPI × 1
- PCM* x 1, for Digital Audio
- I2S x 1
- ADC x 2
- USB 2.0/ 3.0 x 1 (Master mode* and slave mode)
- RGMII × 1
- RESET_N × 1
- Antenna × 2, main antenna and diversity antenna

* VoLTE: Digital Audio and VoLTE (Voice over LTE)

* Enhanced Features
- MIMO: 2 x 2, 4 x 2, DL
- eCall: Emergency Service
- Audio: optional
- VoLTE：Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- FOTA: N/A
- GNSS: N/A
- (U)SIM Detection

* Electrical Features
- Supply Voltage Range: 3.3V~4.5V, 3.8V Typ.
- Power Consumption
56 µA @ Power off
5.42 mA @ Sleep
58.63 mA @ Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10/11
> Linux 2.6-5.18,
> Android 4.x-12.x
- RIL Driver: 4.x-10.x
- NDIS Driver: Windows 7/8/8.1/10/11
- RNDIS Driver: N/A
- ECM Driver: Linux 2.6/3.x/4.x/5.x
- Gobinet Driver: Linux 2.6/3.x/4.x/5.x
- QMI_WWAN Driver: Linux 2.6/3.x/4.x/5.x

* Certifications/Approvals: CE/ RCM

* Applications: router, MiFi, home gateway, Set-top Box, PDA, tablet PCs etc...
