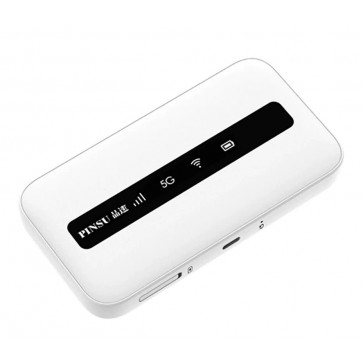

Pinsu R100 5G Mobile Pocket WiFi Router

Pinsu R100 is a new 5G mobile Pocket WiFi router launched by ppopu, which converts 5G wireless signals to Wi-Fi 6 signals, providing high-speed and reliable 5G network access for other devices. Pinsu R100 5G mobile WiFi router adopts Qualcomm X55 high-speed 5G solution design, complies with 3GPP Release 15 standard, and can support independent networking (SA) and non-independent networking (NSA) deployments.

Pinsu R100 5G Pocket WiFi Router Specifications:

* Product type: 5G WiFi Router

* Chipset: Qualcomm SDx55

* Technical Standard: 5G/4G/3G

* Frequency bands:
-- EA:
> 5G NR Sub-6G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
> LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
> LTE-TDD: B38/B39/B40/B41
> WCDMA: B1/B3/B5/B8

--SA:
> 5G NR Sub-6G: n2/n5/n12/n25/n41/n48/n66/n71/n77/n78
> LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
> LTE-TDD: B41/B42/B43/B46/B48
> WCDMA: B2/B4/B5

* WLAN: WiFi 802.11a/b/gn/ac/ax, 2.4GHz & 5GHz, 2 x 2 MIMO

* Maximum data rates:
- 5G NSA: 3Gbps/300Mbps
- FDD-LTE: 1.2Gbps/150Mbps

* Receive diversity: Support

* MIMO: Support DL 4 x 4MIMO

* BB Chipset: Qualcomm SDx55

* WiFi chipset: QCA 6391

* Memory: 4GB+4GB

* USB Charging: Type-c

* USIM/SIM: 4FF SIM card, support SIM/USIM/UIM, Standard 6 pin SIM card interface, support 3V SIM Card and 1.8V SIM Card: internal

* Battery: Li-ion Battery 3600mAh

* Charging time: about 3 hours

* Working time: about 6 hours

* LED: Signal strenght, 5G indication, WiFi indication, Power indication

* USB: Type-C, Charge & internet

* Antenna:
- 5G + 4G: 6 antennas
- WiFi: 2 antennas

* Buttons: Power, Reset

* Working Temperature: -10℃～+45℃

* Storage Temperature: -20℃～+70℃

* Humidity: 5% ～95%

* Dimensions: about 130 x 70 x 19.5mm

* Weight: about 160g

* Color: Black & white
