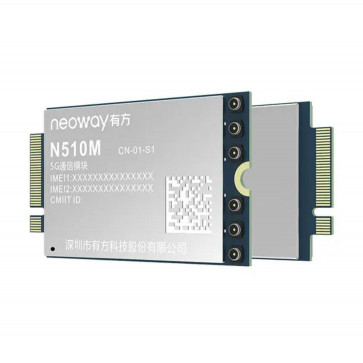

Neoway N510M 5G Wireless Module
* Form factor: 75-pin M.2 B-key package
* 5G dual-mode: SA/NSA
* 5G DL 2Gbps, UL 1Gbps
* Region: China / SEA
* Application: Consumer Electronics, Smart Energy, Industrial Control, Smart Transportation
Availability: In stock
Neoway N510M is a 5G/4G/3G multimode module and supports a wide range of frequency bands and has excellent RF performance. It supports sub-6 GHz 5G spectrum and supports both standalone (SA) and non-standalone (NSA) network deployment. N510M integrates various network protocols and provides industry-standard interfaces. It supports high-speed interfaces, such as PCIe and USB3.1, to meet the requirements for ultrahigh speed data transmission in the eMBB scenario. N510M supports drivers for Windows 7/8/8.1/10, Linux, and Android, and facilitates application development. The N510M series can be used in China, Europe, Southeast Asia, and most other regions where 5G networks are deployed. Even in areas without 5G, N510M can work on 4G and 3G networks.
Neoway N510M 5G Module Specifications:
* Product type: 5G cellular module
* Form factor: 75-pin M.2 B-key package
* 5G dual-mode: SA/NSA
* Frequency Bands:
- 5G NR: n1/n28/n41/n77/n78/n79
- LTE FDD: B1/B3/B5/B7/B8
- LTE TDD: B34/B38/B39/B40/B41
- UMTS: B1/B2/B5/B8
* Data transfer:
- 5G NR: 2Gbps(@100MHz 1cc, 4RX, 256QAM(DL)/1Gbps@100MHz 1CC, 2TX, 256QAM(UL))
- LTE: Cat12, max 600Mbps(DL)/Cat13, max 150Mbps(UL)
- WCDMA: HSPA+, Cat24 Max 42Mbps(DL)/HSUPA, Cat.7 Max 11Mbps(UL)
* Software feature:
- Protocol: TCP/UDP/FTP/HTTP/HTTPS/MQTT/NTP/NITZ/TLS/DNS/LWM2M
- Android RIL: Android 10
- Network Sharing mode: RNDIS/NCM/ECM/PPP
- Fimeware upgrade: Via USB/FOTA
* Supply Voltage: 3.1 V to 4.4 V, TYP.: 3.3 V
* Dimensions: 52.0 mm x 30.0 mm x 3.8 mm
* Operating temperature: -20℃ to 70℃
* Supply Voltage: VBAT: 3.4V-4.3V, Type: 3.8V
* Interface:
- PCIe Gen 2
- USB 2.0 / 3.1
- UART x 1
- USIM (1.8 V / 3.0 V) x 2
- Analog Audio: I2S/PCM
* Protocol: PPP/RNDIS/TCP/UDP/FTP/HTTP/HTTPS/NTP/IPv4/IPv6
* Region: China / SEA
* Certificate Approvals: CCC/CTA/SRRC/RoHS
* Application: Consumer Electronics, Smart Energy, Industrial Control, Smart Transportation
