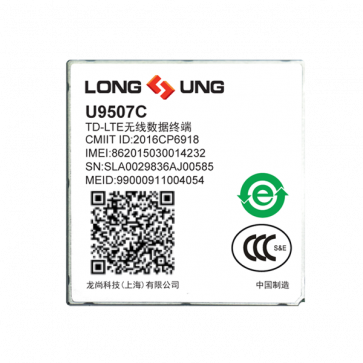

LongSung U9507C LTE Cat4 Module

LongSung U9507C is a wireless 4G LTE Cat4 module supporting LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/EVDO/EDGE/GPRS/GSM/CDMA/GPS/BDS network like the LongSung U9300C module. On LTE-TDD/LTE-FDD network, LongSung could achieve download data speed up to 150Mbps and upload data speed up to 50Mbps. LongSung U9507C provides SMS, MMS, Phonebook functions as well as high-speed access, and also audio function. It can be designed in many kinds of applications, such as Data card, Video monitor, Tablet, Electric-book, MID, the vehicle equipment, etc.

LongSung U9507C Module Specifications:

General Features

* EDGE multi-slot class 12

* GPRS multi-slot class 12

* Compliant to GSM phase 2/2+

* Output power:

- Class 3 (0.25W) for LTE/TD-SCDMA/UMTS

- Class 4 (2 W) for GSM 850/900

- Class 1 (1 W) for GSM 1800/1900

* Control via AT commands(3GPP TS27.005/3GPP TS27.007 )

* Supply voltage range: 3.3V- 4.2V

* Low Power consumption

- Sleep mode: 5mA

- Power down: 50 μA

* Dimensions: 31.0×30.0×2.5mm

* Operation Temperature : -40°C to +85°C

Specifications for SMS:

* Point-to-point MO and MT

* SMS cell broadcast

* Text and PDU mode

Additional features:

* VoLTE

* Phone book

* PCM

* DTMF

Band Configuration:

LongSung U9507C:

* LTE-FDD Band 1/3/5/8

* LTE-TDD Band 38/39/40/41

* TD-SCDMA Band 34/39

* UMTS Band 1/8

* EVDO Single bnad BC0

* CDMA1X Single Band BC0

* GSM Band 3/8

GPS/BDS(BeiDou):

* GPS frequency: 1575.42MHz

* At least support 44 channels

* Location accuracy: ＜10m

* Sensitivity

- Acquisition: -158dBm

- Tracking: -162dBm

* TTFF:

- Cold Start: 60s

- Warm Start: 45s

- Hot Start: 1s

Specifications for data:

* Support Release 9 Category 4

* LTE-FDD up to 150 Mbps DL,50 Mbps UL

* LTE-TDD up to 150 Mbps DL,50 Mbps UL

* TD-SCDMA up to 4.2Mbps DL, 2.2Mbps UL

* DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL

* 1xEV-DOrA up to 3.1Mbps FL, 1.8Mbps RL

* EDGE up to 237Kbps DL,118Kbps UL

* GPRS class 10: 85.6kbps DL,85.6kbps UL

* CSD up to 14.4 kbps

* Non Transparent mode

* PBCCH support

* PPP-stack

* Coding schemes CS 1,2,3,4

* FOTA

* TCP/IP

* NDIS

Interfaces:

- Power supply

- USB 2.0 high speed

- UICC/SIM/UIM card interface 3 V / 1.8 V

- UART

- PCM

- Antenna interface

- HSIC

Approvals:

* RoHS
* CCC
* CTA
