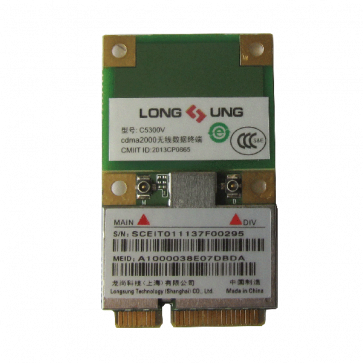

LongSung C5300V EVDO Module

LongSung C5300V is a wireless module supporting 1xEV-DO/CDMA2000 1x/IS-95 network. Designed on a Dual-side PCB, C5300V has a tiny dimension of 26.5×30.0×4.6mm, with a Mini PCI-E connector, which provides all hardware interfaces between the module and customers’ boards. The main hardware interface of C5300V consists of power supply interfaces, USB interface, RUIM/UIM interface, GPIO and PWM interface. Consider connecting antenna, C5300V support plug-in RF connector.

LongSung C5300V Module integrates the RF and Baseband onto one small PCB. It can fulfill all the functions of RF signal receiving and transmitting, Baseband signal processing and audio signal processing so that the customers can realize all kinds of their own wireless products with very few peripheral components.

LongSung C5300V module Specifications:

* Frequency Bands

- EVDO: Single-Band 800MHz

* Data Speed

- 1xEV-DO: DL 3.1Mbps，UL 1.8Mbps

- 1xEV-DO Rev 0: DL 2.4Mbps，UL 153.6Kbps

- CDMA 1x: DL 153.6Kbps，UL 153.6Kbps

* SMS

- Point-to-point MO and MT

- SMS cell broadcast

- Support Text and PDU mode

* Temperature

- Normal operation:-20℃~+65℃

- Restricted Operation:-30℃~+75℃

- Storage temperature:-40℃~+85℃

* ESD

- VBAT, GND: Air dis ge ±8KV，Contact dis ge ±4KV

- RF interface: Air dis ge ±8KV，Contact dis ge ±4KV

- Else ports: Air dis ge ±4KV, Contact dis ge±2KV

* Max power RF transition: 0.25W

* Receiver sensitivity: <-106dBm

* Current consumption

- Off mode: 50uA

- Sleep mode: <4mA

- Idle mode: <45mA

- Voice mode: <260mA

- Data mode: <500mA

* Connector

- PCI express Mini Card interface

- Hirose’s U.FL-R-SMT-1(80) 50ohm antenna connector

* Interfaces

- Power supply interface(5pin VBAT，14pin GND)

- 1 USB2.0 Full-Speed interface

- 1 RUIM/UIM card interface(supports both 3V and 1.8V RUIM/UIM)

- 1 UART interface

- 1 sleep and awake interface

- 1 voltage output

- 1 VRTC

- 2 hardware reset interface

- 1 PWM interface

- 1 GPIO

- 1 flying mode interface

* Antenna connector

- 1 main RF connect，impedance of 50Ω

- 1 division RF connect，impedance of 50Ω

* AT commands:

- Standard AT commands (Hayes 3GPP TS 27.007 and 27.005)

- Support LongSung Extend AT commands

* Dimensions

- 26.5mm×30.0mm×4.6mm(Half size)

- 51.0mm×30.0mm×4.6mm(Full size)

* Weight: <6g

* Fixed structure: Fixed by 2 screws

* Test points

- Has 19 test points:

- JTAG interface 10

- VBAT 1

- GND 2

- RUIM interface 4

- USB interface 2

* Approvals: RoHS/CTA
