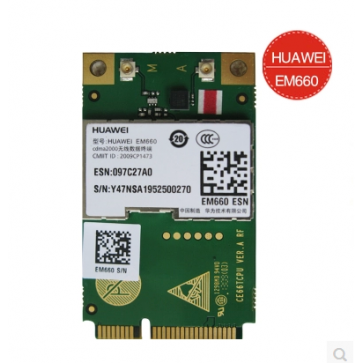

Huawei EM660 EVDO PC Embedded Module
* Supporting 800 MHz/1900 MHz frequency band
* Supporting the CDMA2000 1x standard
* Supporting the CDMA2000 1xEV-DO Rev. 0 standard
* Supporting the CDMA2000 1xEV-DO Rev. A standard
* Supporting receiving diversity
* Supporting R-UIM/ROM-UIM outside
Availability: In stock
Regular Price: $149.00
Special Price $129.00
Product Downloads
Huawei EM660 EVDO PC Embedded Module is a Wireless Wide Area Network (WWAN) PC module based on the CDMA2000 1x, the CDMA2000 1xEV-DO Rev. 0, and the CDMA2000 1xEV-DO Rev. A protocols. It is a multi-mode wireless terminal for business professionals. In addition to messaging services, Huawei EM660 provides high-rate packet data services, supporting wireless downloading at a speed as high as 3.1 Mbps and uploading at speed as high as 1.8Mbps.
Huawei EM660 Key features:
* Supporting 800 MHz/1900 MHz frequency band
* Supporting the CDMA2000 1x standard
* Supporting the CDMA2000 1xEV-DO Rev. 0 standard
* Supporting the CDMA2000 1xEV-DO Rev. A standard
* Supporting receiving diversity
* Supporting R-UIM/ROM-UIM outside
* Supporting messaging
* Supporting high-rate packet data services
* Supporting PC Voice(Optional)
The Huawei EM660 can be connected to a PC via the Mini PCI Express interface. In the service area of the CDMA2000 1x, EV-DOr0 or EV-DorA network, you can surf the Internet, send messages and emails, telephone, and receive messages/emails cordlessly. The EM660 is fast, reliable, and easy to operate. Thus, mobile users can experience many new features and services with the EM660. These features and services will enable a large number of users to use the EM660 and the average revenue per user (ARPU) of operators will increase substantially.
Huawei EM660 Technical Specifications:
* Standard
- CDMA2000 1x RTT
- CDMA2000 1xEV-DO Rel. 0
- CDMA2000 1xEV-DO Rev. A
* Data speed
- Uplink: up to 1.8 Mbit/s
- Downlink: up to 3.1 Mbit/s
* Working frequency
- CDMA 800 MHz: Uplink(824–849 MHz) & Downlink(869–894 MHz)
- CDMA 1900 MHz: Uplink(1850–1910 MHz) & Downlink(1930–1990 MHz)
* Receiving sensitivity
- CDMA2000 1x RTT: compliant with 3GPP2 CS0011-C: excelled - 104 dBm
- CDMA2000 1x EV-DO: compliant with 3GPP2 CS0033-A: excelled - 105.5 dBm
* Interfaces: Mini PCI Express 1.2 interface (USB 2.0 Full Speed)
* Support OS: Windows 2000/Windows XP/Windows Vista/Linux 2.6.18 or later versions
* Maximum transmit power
- CDMA 800 MHz +23 dBm(Power Class 3)
- CDMA 1900 MHz +23 dBm(Power Class 2)
* Maximum power consumption <3.3 W
* Working voltage 3.0~3.6V
* Dimensions (L % W % H): 51.0mm×30.0mm×5.0mm
* Weight About 8 g
* Ambient temperature
- Operating: -10℃ to +55℃
- Storage -40℃ to +85℃
* Relative humidity 5%–95%
