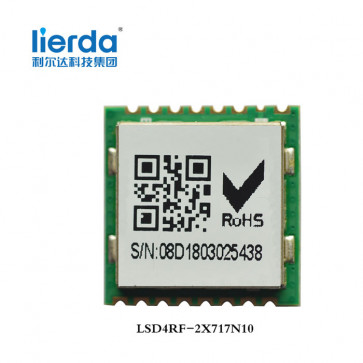

Lierda LSD4RF-2X717N10 SX1208 470M 100mW RF Module

Lierda LSD4RF-2X717N10 wireless module is a radio frequency module based on the RF integrated chip SX1208. It is a high-performance IoT wireless transceiver that can be widely used in short-range IoT wireless communication in various occasions. It has the characteristics of small size, low power consumption, long transmission distance and strong anti-interference ability. Customers can choose a variety of antenna schemes according to the actual application, mainly for secondary development of customers.

Lierda LSD4RF-2X717N10 Specifications:

* Working voltage: 2.4~3.6V;

* Working frequency band: 401-510MHz;

* Transmit power: 19±1 dBm(max) FSK, GFSK, MSK, GMSK and OOK modulation;

* Support hardware CRC, AES-128;

* SPI communication interface, can be directly connected to various single-chip microcomputers, software programming is very convenient;

* Programmable multiple communication rates, in FSK mode: 0.6~100Kbps, OOK mode: 1~10Kbps;

* High reliability, high performance and small size.
