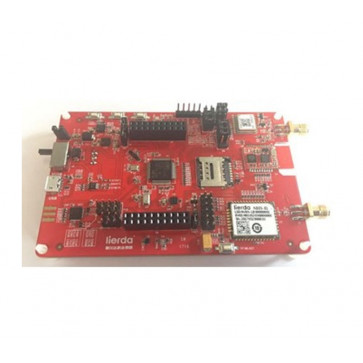

Lierda LSD4NBT-B208000001 NB-IoT EVK Development Board

* Lierda NB-IoT Test Board

* Support NB-IoT, Bluetooth and GPS

* Working frequency band: Band 5 and 8

* Built-in temperature/humidity, pressure, illuminance, and acceleration sensors

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Lierda LSD4NBT-B208000001 NB-IoT EVK Develpment board is based on Huawei Hisilicon Boudica chipset to help users evaluate and learn NB-IoT hardware interfaces and basic command of software development.

The Lierda LSD4NBT-B208000001 NB-IoT EVK includes:

* NB-IoT Test Board

* Power adapter

* EVK Application files

The Lierda LSD4NBT-B208000001 Hardware interfaces:

The Boudica chip extension leads to 2 UARTs, 18 GPIOs, SMA antenna interfaces, SIM card interfaces, reset buttons, and JTAG debug interfaces.

The Lierda LSD4NBT-B208000001 Software interfaces:

* Supports Boudica chip RX, TX, Sleep, Idle and other status switching, AT command set and test cases

* Support LogView, which is convenient for users to debug the hardware and software of the chip.

Lierda LSD4NBT-B208000001 EVK Board Specifications:

* Working Voltage: 3.6V

* Working frequency band: Band 5 and 8

* Transmitting power: 23dBm

* Sensitivity: -130dBm ± 2dB

* Compliant with 3GPP

* Support NB-IoT, Bluetooth and GPS etc..

* Built-in temperature/humidity sensors, pressure sensor, illuminance sensor, and acceleration sensor, etc.
