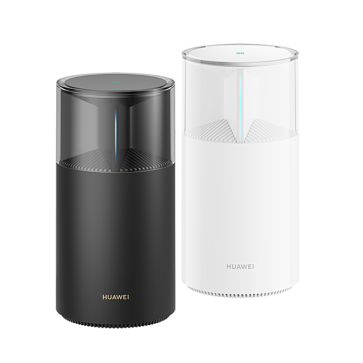

Huawei X1 Pro WiFi 7 Router

Huawei WiFi Mesh X1 Pro is a Wi-Fi 7 router offering 3.6 Gbps total dual-band speed (2.4 GHz: 688 Mbps; 5 GHz: 2,882 Mbps) with MLO technology. It features 4x 2.5 Gbps Ethernet ports, 512 MB RAM, and Lingxiao chip performance. The unit uses smart antennas for enhanced coverage and HarmonyOS 4 features for easier management.

Huawei X1 Pro WiFi Mesh Router Features & Specifications

* Wireless Standard: Wi-Fi 7 (802.11be).

* Network Port: 4 × 10/100/1000/2500 Mbps adaptive rate Network Ports

* Total Speed: Up to 3.6 Gbps (688 Mbps on 2.4 GHz; 2,882 Mbps on 5 GHz).

* Antennas: 2.4 GHz: 2 antennas; 5 GHz: 5 smart antennas(3 omnidirectional antennas + 2 cross-floor mesh antennas)

* Wired Ports: 4 x 10/100/1000/2500 Mbps adaptive WAN/LAN ports.

* Processor & Memory: Lingxiao chip, 512 MB RAM + 128 MB ROM.

* Button: WPS button, Reset hole

* Features: Multi-Link Operation (MLO), Cross-Floor Mesh Antenna (30% better vertical coverage), HUAWEI HomeSec® Security.

* LED Indicator: 1 × Status indicator with two colors (red, ice blue)

* Power Supply
- Power supply: 12 V DC, 2 A
- Power consumption: < 24 W
- Input voltage: 100–240 V AC
- Input voltage frequency: 50–60 Hz

* Firewall Security: Supported

* HUAWEI HomeSec: HUAWEI HomeSec® security protection: supports Wi-Fi anti-brute force cracking

* Parental Control: Supports duration restrictions, interception of malicious websites to protect children's healthy internet access

* Wi-Fi Security: Supported(WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, and blocklist/trustlist)

* Environment
- Operating Temperature: 0℃ to 40℃ (32℉–104℉)
- Operating Humidity: 5% to 95% RH, non-condensing
- Storage Temperature: –40℃ to +70℃ (–40℉ to +158℉)
- Storage Humidity: 5% to 95% RH, non-condensing

* Software Functions: Supports HUAWEI Mesh+ and 802.11k/v/r protocol, PPPoE/DHCP/static IP internet access, Intelligent detection, blind insertion of network ports,HUAWEI AI Life App Remote Management, Wi-Fi timer switch, Guest Wi-Fi, Wi-Fi anti-brute force cracking, WPA3, Parental control, VPN penetration, DMZ, Virtual server

* Dimensions & Weight: 227.2 mm height x 115.4 mm diameter, 957g

* Packing List
- 1 × Power adapter
- 1 × Quick Start Guide
- 1 × Router
- 1 × Network cable
