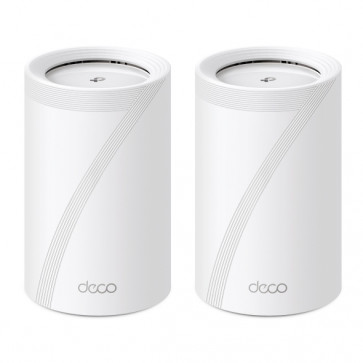

TP-Link Deco BE63 BE10000 Whole Home Mesh WiFi 7 System

Highlight Features:

* 10 Gbps Tri-Band WiFi – 5188 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†

* 2.5 Gbps Wired Connections – 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§

* Premium Backhaul Peformance – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.

* Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△

* New 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△

* New 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△

* TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*

* Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

TP-Link Deco BE63 WiFi 7 Router Specifications:

* Standards/Wi-Fi 7
• IEEE 802.11be/ax 6 GHz
• IEEE 802.11be/ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: BE10000
• 6 GHz: 5188 Mbps (802.11be)
• 5 GHz: 4324 Mbps (802.11be)
• 2.4 GHz: 574 Mbps (802.11ax)

* WiFi Range/Broader Whole Home Coverage
• TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

• AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

• 4× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

• Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds

* WiFi Capacity/Very High
• Tri-Band
Distribute devices to different bands for optimal performance

• 2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

• OFDMA
Simultaneously communicates with multiple WiFi 7 clients

• 6 Streams
More than enough bandwidth for connected devices

* Working Modes
• Router Mode
• Access Point Mode

* Advanced Functions
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant

HARDWARE

* Ethernet Ports
• 4× 2.5 Gbps

*Per Deco Unit
Supports WAN/LAN auto-sensing

* USB Support:
• 1× USB 3.0 port
FTP Server
Media Server
Apple Time Machine
Samba Server

* Buttons:
• 1× Reset Button
• 1× WPS

SECURITY

* Network Security
• SPI Firewall
• Access Control

• HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner

* Guest Network
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
Effective Time
Bandwidth Control

* VPN Server
• OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server

* VPN Client
• OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client

* WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

SOFTWARE

* Advanced Features
• Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference

* Protocols
• IPv4
• IPv6

* Service Kit: HomeShield

* Parental Controls:
• HomeShield Parental Controls
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports

* WAN Type
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

* Quality of Service
- HomeShield QoS: QoS by Device

* Cloud Service
- OTA Firmware Upgrade
- TP-Link ID
- DDNS

* NAT Forwarding
• Port Forwarding
• UPnP

* IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

* DHCP
• Address Reservation
• DHCP Client List
• Server

* DDNS: TP-Link

* Management: Deco APP

* Dimensions (W×D×H): 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm)

* Package Contents
- Deco BE63 (3-pack)
3 Deco BE63 units
1 RJ45 Ethernet cable
3 Power adapters
Quick Installation Guide

- Deco BE63 (2-pack)
2 Deco BE63 units
1 RJ45 Ethernet cable
2 Power adapters
Quick Installation Guide

- Deco BE63 (1-pack)
1 Deco BE63 unit
1 RJ45 Ethernet cable
1 Power adapter
Quick Installation Guide

* Certifications: CE, FCC, RoHS

* Environment
Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
