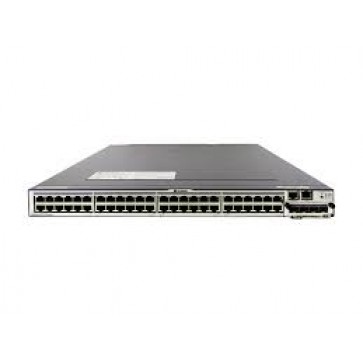

Huawei S5700-52C-EI Gigabit Enterprise Switch

* 48 x Ethernet 10/100/1000 ports

* Subcards supported: 4x1000Base-X SFP subcard, 2x10GE SFP+ subcard, and 4x10GE SFP+ subcard

* Double hot swappable AC/DC power supplies

* Forwarding performance: 132 Mpps

* Switching capacity: 256Gbps

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei S5700-52C-EI Gigabit Enterprise Switch is a next-generation energy-saving switches developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on the cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700-52C-EI provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions. The S5700-52C-EI is for use in various enterprise network scenarios.

Huawei S5700-52C-EI is easy to install and maintain, reducing workloads for network planning, construction, and maintenance. The Huawei switch S5700-52C-EI uses advanced reliability, security, and energy conservation technologies, helping enterprise customers build a next generation IT network.

Huawei S5700-52C-EI Gigabit Enterprise features:

* 48 x Ethernet 10/100/1000 ports

* Subcards supported: 4x1000Base-X SFP subcard, 2x10GE SFP+ subcard, and 4x10GE SFP+ subcard

* Double hot swappable AC/DC power supplies

* Forwarding performance: 132 Mpps

* Switching capacity: 256Gbps


Huawei S5700-52C-EI Switch Technical Specifications:

* Fixed port: 48 x 10/100/1000Base-T

* Extended slot: it provides two extended slots, one for an uplink subcard and the other for a stack card

* MAC Address Table:

- IEEE 802.1d compliance
- 32K MAC
- MAC address learning and aging
- Static, dynamic, and blackhole MAC address entries
- Packet filtering based on source MAC addresses

* VLAN Feature:

- 4K VLANs
- Guest VLAN and voice VLAN
- VLAN assignment based on MAC addresses, protocols, and IP subnets, policies, and interfaces
- 1:1 VLAN mapping, N:1 VLAN mapping

* Reliability:

- RRPP ring topology and RRPP multi-instance
- Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
- Smart Ethernet Protection (SEP)
- ERPS (G.8032)
- BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
- STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)
- BPDU protection, root protection, and loop protection
- E-Trunk

* IP routing: Static routing, RIPv1/v2, RIGng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, and ECMP

* IPv6 features:

- Neighbor Discovery (ND)
- Path MTU (PMTU)
- IPv6 ping, IPv6 tracert, and IPv6 Telnet
- ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
- MLD v1/v2 snooping
- IPv4 and IPv6 dual stack
- 6 to 4 tunnel, ISATAP tunnel, and manually configured tunnel

* Multicast

- IGMP v1/v2/v3 snooping and IGMP fast leave
- Multicast forwarding in a VLAN and multicast replication between VLANs
- Multicast load balancing among member ports of a trunk
- Controllable multicast
- Port-based multicast traffic statistics
- IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM

* QoS/ACL:

- Rate limiting on packets sent and received by an interface
- Packet redirection
- Port-based traffic policing and two-rate three-color CAR
- Eight queues on each port
- WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
- WRED (supported by the S5710-EI)
- Re-marking of the 802.1p priority and DSCP priority
- Packet filtering on Layers 2 to layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
- Rate limiting in each queue and traffic shaping on ports

* Security & access

- User privilege management and password protection
- DoS attack defense, ARP attack defense, and ICMP attack defense
- Binding of the IP address, MAC address, interface, and VLAN
- Port isolation, port security, and sticky MAC
- Blackhole MAC address entries
- Limit on the number of learned MAC addresses
- 802.1x authentication and limit on the number of users on an interface
- AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
- SSH v2.0
- Hypertext Transfer Protocol Secure (HTTPS)
- CPU defense
- Blacklist and whitelist


* Management and maintenance

- iStack
- MAC Forced Forwarding (MFF)
- Virtual cable test
- SNMP v1/v2c/v3
- Web-based NMS
- System logs and alarms of different levels

* Interoperability

- Supports VBST (Compatible with PVST/PVST+/RPVST)
- Supports LNP (Similar to DTP)
- Supports VCMP (Similar to VTP)

* Operating environment

- Operating temperature: 0°C to 50°C (long term);
- Relative humidity: 5%–95% (non-condensing)

* Input Voltage

- Rated AC voltage: 100V to 240V, 50/60 Hz, Maximum voltage: 90V to 264V, 47/63 Hz

* Dimensions (W x D x H): 442 mm x 420 mm x 43.6 mm

* Weight: <5kg

* Power Consumption: < 88W
