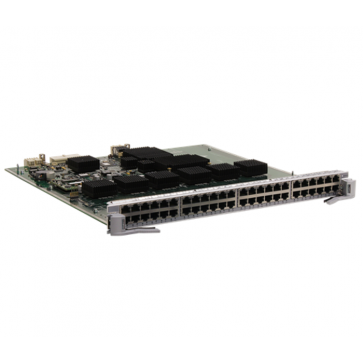

Huawei ES1D2G48TED0 S7700 Series Switch Line Card

* Huawei ES1D2G48TED0 card

* Status: Brand New Sealed

* 48-Port 10/100/1000BASE-T Interface Card(ED,RJ45)

* Apply to S7700 Switch

* Hot Swap supported

* Connector type: RJ45

* MAC Address Table Size: 512K

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei ES1D2G48TED0 can be installed in a front card slot on S7703, S7706, S7712 switch, provide 48 GE electrical ports for data transmission and line-rate switching.

Huawei ES1D2G48TED0 features and specifications:

* Description: 48-Port 10/100/1000BASE-T Interface Card(ED,RJ45)

* Category: Hardware

* Product Line: Networking

* Product Category: S7700 Interface Card

* Sub Product Family: Campus Switch

* Product Series: S7700

* Form Factor: Plug-in module

* Connector type: RJ45

* Standards compliance: IEEE802.3ab and IEEE802.3az

* Frame format: Ethernet_II, Ethernet_SAP, Ethernet_SNAP

* Network protocol: IP

* Version Mapping: ES1D2G48TED0 is supported in V200R002C00 and later versions

* Maximum Power Consumption: 98 W

* Operating temperature: 0°C to 45°C (32°F to 113°F)

* Operating relative humidity: 5% RH to 95% RH (noncondensing)

* Storage temperature: -40°C to +70°C (-40°F to +158°F)

* Storage relative humidity: 5% RH to 95% RH (noncondensing)

* Physical size: 394.7 mm x 426.8 mm x 35.1 mm

* Weight: 2.50 kg

* Status: Brand New Sealed
