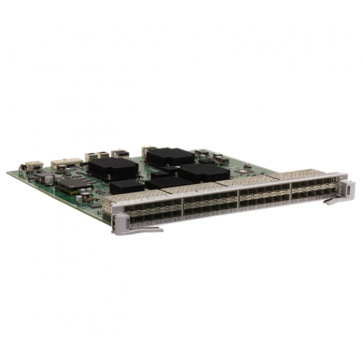

Huawei ES1D2G48SBC0 S7700 Series Switch Line Card

* Huawei ES1D2G48SBC0 card

* 48-Port 100/1000BASE-X Interface Card(BC,SFP)

* Apply to S7700 Switch

* Hot Swap supported

* MAC Address Table Size: 128K

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei ES1D2G48SBC0 can be installed in a front card slot on S7703, S7706, S7712 switch, provides forty-eight 100M/1000M optical interfaces for line-speed forwarding. The large buffer of the card enables the card to handle 50 Gbit/s traffic in case of traffic bursts.

Huawei ES1D2G48SBC0 features and specifications:

* Description: 48-Port 100/1000BASE-X Interface Card(BC,SFP)

* Category: Hardware

* Product Line: Networking

* Product Category: S7700 Interface Card

* Sub Product Family: Campus Switch

* Product Series: S7700

* Form Factor: Plug-in module

* Connector type: SFP

* Standards compliance: IEEE802.3ab

* Frame format: Ethernet_II, Ethernet_SAP, Ethernet_SNAP

* Network protocol: IP

* Version Mapping: ES1D2G48SBC0 is supported in V200R002C00 and later versions

* Maximum Power Consumption: 185 W

* Operating temperature: 0°C to 45°C (32°F to 113°F)

* Operating relative humidity: 5% RH to 95% RH (noncondensing)

* Storage temperature: -40°C to +70°C (-40°F to +158°F)

* Storage relative humidity: 5% RH to 95% RH (noncondensing)

* Physical size: 394.7 mm x 426.8 mm x 35.1 mm

* Weight: 2.66 kg

* Status: Brand New Sealed
