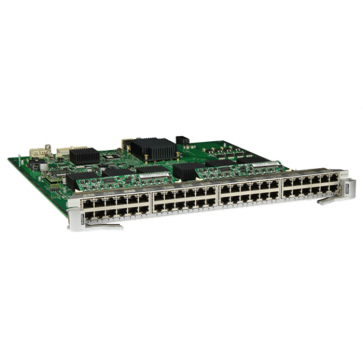

Huawei ES0D0G48VA00 S7700 Series Switch Line Card

* Huawei ES0D0G48VA00 card

* 48 x 10/100/1000BASE-T Ethernet PoE electrical ports

* Apply to S7700 Switch

* Hot Swap supported

* MAC Address Table Size: 32K

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei ES0D0G48VA00 can be installed in a front card slot on S7703, S7706, S7712 switch, provides forty-eight GE electrical ports and integrates the data switching unit and PoE management unit.

Huawei ES0D0G48VA00 features and specifications:

* Description: 48-Port 10/100/1000BASE-T POE Interface Card(EA,RJ45,POE)

* Category: Hardware

* Product Line: Networking

* Product Category: S7700 Interface Card

* Sub Product Family: Campus Switch

* Product Series: S7700

* Form Factor: Plug-in module

* Connector type: RJ45

* Standards compliance: IEEE802.3ab, IEEE 802.3af, IEEE 802.3at

* Frame format: Ethernet_II, Ethernet_SAP, Ethernet_SNAP

* Network protocol: IP

* Version Mapping: ES0D0G48VA00 is supported in V100R003C01 and later versions

* Maximum Power Consumption: 64 W (The PoE power supply is not included.)/30 W for each port and 1440 W for the whole card

* Operating temperature: 0°C to 45°C (32°F to 113°F)

* Operating relative humidity: 5% RH to 95% RH (noncondensing)

* Storage temperature: -40°C to +70°C (-40°F to +158°F)

* Storage relative humidity: 5% RH to 95% RH (noncondensing)

* Physical size: 394.7 mm x 426.8 mm x 35.1 mm

* Weight: 2.60 kg

* Status: Brand New Sealed
