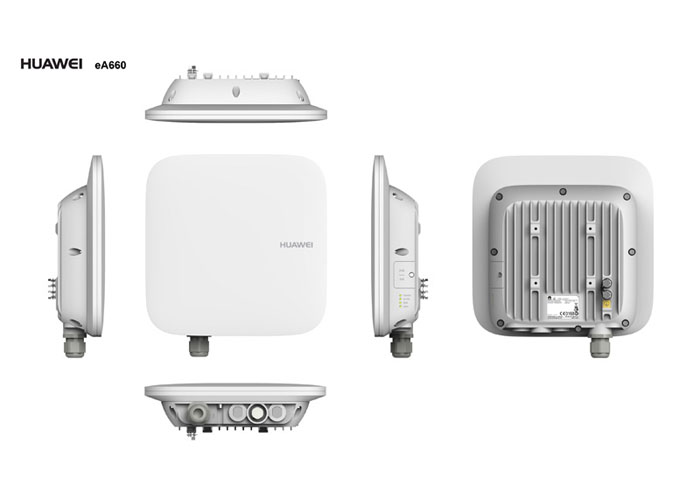

Huawei eA660 eLTE CPE

Huawei eA660 is a new eLTE wireless gateway which can be deployed outdoors as CPE to provide services such as data collection and video surveillance. The industrial-grade eA660 acts as a wireless gateway delivering eLTE wireless routing; converts eLTE wireless data to wired Ethernet data and vice versa.

Huawei eA660 complies with LTE 3GPP standards and an anti-lightening, shockproof, dustproof, and waterproof enclosure. The eA660 is better suited for extremely harsh environments.

The eA660 is developed based on the Software Development Platform (SDP). It supports LTE and quick customization. The eA660's main features are as follows:

* Compatible with 1.8 GHz, 2.3 GHz and 5.8 GHz LTE Time-Division Duplex (TDD) networks; supports customization of different frequency bands

* High-speed data services

* Dynamic Host Configuration Protocol (DHCP) and Network Address Translation (NAT) that provide high-speed routing service

* Firewall functions

* Web-based configuration utility that has an intuitive user interface

* Device management that supports TR-069

* Intuitive LED indicators, for easy identification of the device status

* Built-in high-gain antennas that improve product performance and make the device easy to carry; also compatible with external antennas

* Surge protection in outdoor environments

* Anti-shock capabilities that meet the IEC61373 (railway) and MIL-STD-810F (USA military) standards
 Shell protection that meets the IP67 standard

There are few versions of Huawei eA660 eLTE Gateway, below are the specifications:

* LTE Category 4

Huawei eA660-208:

- eLTE FDD Band 20 (UL: 832 MHz to 862 MHz; DL: 791 MHz to 821 MHz)
- eLTE FDD Band 5 (UL: 824 MHz to 849 MHz; DL: 869 MHz to 894 MHz)

Huawei eA660-118:

- eLTE TDD Band 62 (1,785 MHz to 1,805 MHz)

Huawei eA660-160:

- eLTE TDD Band 40 (2,300 MHz to 2,400 MHz)
- eLTE TDD Band 38 (2,570 MHz to 2,620 MHz)

Huawei eA660-135:

- eLTE TDD Band 42 (3,400 MHz to 3,600 MHz)
- eLTE TDD Band 40 (2,300 MHz to 2,400 MHz)

Huawei eA660-123:

- eLTE TDD Band 40 (2,300 MHz to 2,400 MHz)

Huawei eA660-150:

- eLTE TDD Band ? (4900 MHz to 5100 MHz)
- eLTE TDD Band ? (5100 MHz to 5900 MHz)

Huawei eA660–137:

- eLTE TDD Band 43 (3600MHz～3800MHz)

Technical standard WAN: LTE 3GPP Release 9

External Interface:

- 1 Ethernet interface (RJ45): 10/100 Base-TX
- 1 USB interface
- 2 External antenna interfaces (N-type female connector)
- 1 SIM card slot

Maximum Transmit Power: 23 ±2 dBm

Receiving Sensitivity

* < -100 dBm/5 MHz
* < -97 dBm/10 MHz
* < -94 dBm/20 MHz

Power Consumption: < 25W

Power supply: Power over Ethernet (PoE)

Dimensions (W x D x H): 285 mm x 250 mm x 85 mm; eA660-208 only: 245 mm x 205 mm x 75 mm

Weight: About 3 kg (power supply adapter not included)

Water and Dust Proof: IP67

Anti-shock capabilities: MIL-STD-810F & IEC61373

Humidity: 5% ~ 95%

Working Temperature: -40℃ to +65℃

Installation: Mounted on poles or walls
