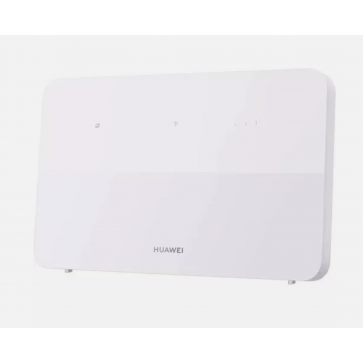

Huawei B636-336 4G LTE WiFi 6 CPE

Huawei B636-336 is a new 4G LTE WiFi Router and provide peak download speeds up to 400Mbps and upload speeds up to 200Mbps. Huawei B636-336 router has 4 Gigabit RJ45 Ethernet ports (3x LAN, 1x LAN/WAN) and an RJ11 port for calls via a SIM card number or via a VoIP account configured via the interface. The router also has two SMA connectors for external 4G LTE antennas and a SIM card slot for a Nano-SIM card.

Huawei B636-336 4G Router Specifications:

* Product type: 4G LTE WiFi Router

* Support 4G LTE Bands: FDD B1/3/5/7/8/20/28/32 & TDD B38/40/41/42/43

* 3G DC-HSPA+/HSPA+/UMTS 900/2100mhz (Bands 1/5/8)

* Frequency aggregation combinations:
DL:1C/3C/7C/38C/40C/41C/42C/43C/3A-3A/40A-40A/41A-41A/1A-3A /1A-7A/1A-8A/1A-20A/1A-28A/1A-32A/1A-40A/1A-41A/3A-7A/3A-8A/3A-20A/3A-28A/3A-32A/3A -38A/3A-40A/3A-41A/3A-42A/7A-8A/7A-20A/7A-28A/7A-32A/8A-40A/8A-41A/20A-32A,
UL: 1C/3C/7C/38C/40C/41C/42C/43C.
DL 4x4 MIMO with 1CC aggregation or 2x2 MIMO with 2CC, 256 QAM.

* WiFi 6 AX3000 802.11 a/b/g/n/ac/ax in the 2.4Ghz and 5Ghz bands up to 128 devices simultaneously (64 on each band), 574 mbit/s on the 2.4Ghz band , 2400 mbit/s on the 5Ghz band. WPA3 compatible.

* CPU processor: Hisilicon Balong, memory: LPDDR4X 256 mbit/s, Flash 256 mbit/s

* 2 SMA connectors for 4G external antenna

* 4 Gigabit RJ45 ports (10/100/1000) including 1 LAN/WAN port

* 1 RJ11 port for calls via SIM card number inserted or via VoIP account configured from the interface.

* Complete interface for experts: IP and MAC address reservation, Frequency selection, Router IP change, DDNS, Integrated L2TP PPTP VPN client

* Supports reception and transmission of SMS ... Anti brute force, Firewall , DoS attack protection.

* Information page with Cellid, RSRP, RSRQ and SINR (perfect for pointing a 4G outdoor antenna)

* HPUE functionality: improves the received signal depending on the frequency used.

* Slot for nanoSIM sim card, 1 WPS button, 1 RESET button, 1 Internet Status LED, 1 WiFi LED, 3 signal strength LEDs for 3G/4G/4G++ networks

* Dimensions (cm): 19.8 (w) x 12.5 (h) x 2.79 (d)

* Operating temperature: 0 to 40°C, storage temperature: -20° to 70°C

* Router weight: 305g

* Maximum consumption: < 12W

* Possibility of using the Huawei AI Life application available via Hicloud, AppGallery or Apple Store, Huawei Smart Home.

* Compatible with Windows 8, 8.1, 10, 11, MacOSX 10.12, 10.13, 10.14, 10.15

If you need the external antenna for Huawei B636 Router, we would like to recommend the two antennas. We had tested the antennas and they can work well with Huawei B636 LTE Router:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

If you prefer 4G outdoor antenna to get a better signal, you could try the antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html
