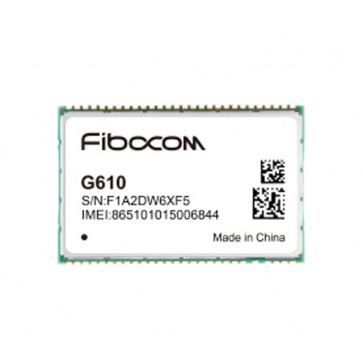

FIBOCOM G610 2G GSM/GPRS Module
* 2G GSM/GPRS Module
* Form factor: LCC 55pin
* Four sub-models
* built-in TCP/IP protocol stack
Availability: In stock
FIBOCOM G610 modules are designed based on the application traits of portable products. They have low power consumption, are small in size, and they adopt an LCC package. Connectors are omitted for the convenience of bulk processing, thus helping customers reduce the total cost of terminals systematically.
FIBOCOM G610 module supports GSM/GPRS 850/900/1800/1900 MHz. It has a built-in TCP/IP protocol stack and a reliable GPRS data connection. The AT instruction set and G600 are both fully compatible. Numerous extended interfaces such as I2C and definable GPIO can be easily integrated with peripheral equipment and the design of products is simpler and more flexible.
The FIBOCOM G610 module meets industrial-grade demands and its production and manufacturing fully conform to ISO/TS16949 certification. It can adapt to severe working environments with high temperatures, high humidity, and electromagnetic interference.
The combination of extremely compact design and broader temperature range has made the G610 the ideal choice for portable products in the field of M2M technology applications, such as personal location and tracking, vehicle team management, handheld devices, environmental monitoring, and remote medical services.
Fibocom G610 Specifications:
FIBOCOM G610 Q50-00： 2G GSM 850/900/1800/1900MHz
FIBOCOM G610 A50-00： 2G GSM 900/1800MHz
FIBOCOM G610 A50-90： 2G GSM 900/1800MHz
FIBOCOM G610 A50-10： 2G GSM 900/1800MHz
- Multi-slot class 10(4 Down; 2 Up; max.5)
- Max BR Download 85.6 Kbps
- Coding Scheme CS1-CS4
- Size：31.3× 20.2 × 3.0mm
- LCC 55pin
- Ultra Low Consumption：1.6mA@sleep mode(DRX9)
- Operating Temperature：-40 ~ +85℃
- Operating Voltage：3.3 ~ 4.5V
