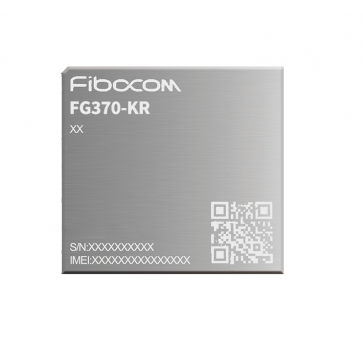

Fibocom FG370-KR 5G Sub-6Ghz LGA Module

Fibocom FG370-KR is a series of 5G communication modules for Korea Market, which supports both 5G SA and NSA network architectures with faster transmission speed, better carrying capacity, and lower network latency.

Fibocom FG370-KR is equipped with MTK T830 chip, adopting 4nm manufacturing process. It supports 5G NR sub-6GHz dual-carrier convergence (4CC CA) 300MHz frequency. FG370 has a built-in 4-core ARM Cortex-A55 2.2 GHz CPU, supporting two 10Gbps USXGMII interfaces, a variety of LAN port configurations, and a variety of Wi-Fi configurations, providing a complete set of CPE, gateway and other complete machine solutions.

Fibocom FG370-KR is mainly aimed at intelligent terminals such as fixed wireless access (FWA), CPE, gateway, router, industrial monitoring terminal and telemedicine terminal.

Fibocom FG370-KR 5G module Specifications:

* Product type: 5G wireless module

* Target Region: South Korea

* Package : LGA

* Dimension(mm): 41x44x2.75

* 5G Sub-6: n77/78/79

* LTE FDD: B1/3/5/7/81

* WCDMA:

* Operation mode: NSA&SA

* Antenna: 6 cellular + 1 GNSS

* Operating Voltage: 3.3V~4.4V, Typical 3.8V

* Operating Temp.: -40°C - +85°C

* NR MIMO
- DL 4×4MIMO:
- UL 2×2MIMO:

* LTE MIMO: DL 4×4 MIMO:

* NR SA(Mbps):
- 256QAM/Peak rate 7.01Gbps downlink
- 256QAM/Peak rate 1.25Gbps uplink

* LTE(Mbps):
- 256QAM/Peak rate 1.6Gbps downlink
- 256QAM/Peak rate 211Mbps uplink

* WCDMA(Mbps): N/A

* Functions
- Memory: 2GB DDR + 32GB Flash
- Audio/VoLTE: ●
- FOTA: DFOTA*
- OS Drivers: Kernel 5.4/OpenWRT 21.02
- GNSS: GPS/GLONASS/Galileo/BeiDou/QZSS

* Interfaces
- USB: USB 3.1 Gen2
- PCle: PCIe4.0
- UART: ●
- SPI: ●
- GPIO: ●
- I2C: ●
- SDIO: ●
- UIM: ●
- I2S: ●
- MIPI: ●
- RGMII: USXGMII

* Certification
- Regulation: GCF*/KC*
- Operator: Korea
