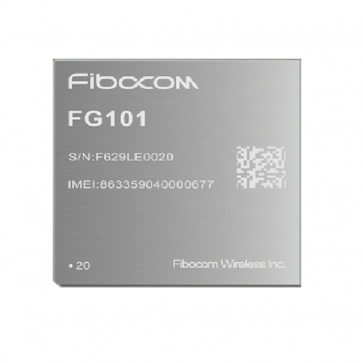

Fibocom FG101-EAU-10/20 4G LTE Cat13 Module

* Fibocom 4G LTE Module


* Form factor: LGA


* Target Region:Asia, Europe, Australia, Middle East, Africa


* LTE DL 400Mbps, UL 150Mbps


* Driver: Linux/ Android**/Windows**

Sign up for price alert

Availability: In stock

$189.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Fibocom FG101-EAU-10/20 is a LGA form factor LTE wireless module which supports LTE-TDD/LTE-FDD/WCDMA modes .The highest speed can reach Cat6 300Mbps DL and 50Mbps UL and Cat13 400Mbps DL and 150Mbps UL. It can cover EMEA/Australia mobile network and be used in industries such as CPE, MIFI, Industrial gateway, IPC and so on.

Fibocom FG101-EAU-10/20 module specifications:

* LTE FDD: B1/3/5/7/8/20/28/32

* LTE TDD: B38/40/41(100M)

* WCDMA: B1/3/5/8

* LGA: 37*39.5*2.8mm

* Temperature
- Normal Operation: -30~+75°C
- Extended operation: -40~+85°C
- Storage Temperature: -40~+90°C

* Operating Voltage: 3V~4.3V typical 3.8V

* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* TX Power
- WCDMA : 23.5dBm±2dBm
- LTE FDD: 23.0dBm±2dBm
- LTE TDD: 23.0dBm±2dBm

* Cat6 Speeds
LTE:UL:50Mbps DL:300Mbps
WCDMA:UL:11Mbps DL:42Mbps


* Cat13 Speed
LTE:UL:150Mbps DL:400Mbps
WCDMA:UL:11Mbps DL:42Mbps

* SMS: MO/MT Text and PDU modes

* Other: GNSS/LBS/CellID

* SIM Card: 1.8V/2.85V

* Antenna: Main/Div/GNSS

* Driver: Linux/ Android**/Windows**

* Industry: GCF*/HF*

* Regulation: CE-RED*/UKCA*/RCM*/RoHS*/REACH*

* Operator: DT*/Vodafone*/BT**/H3G**/EE**/Telefonica**/Swisscom**/Optus**
(* = Planning ** = Developing)
