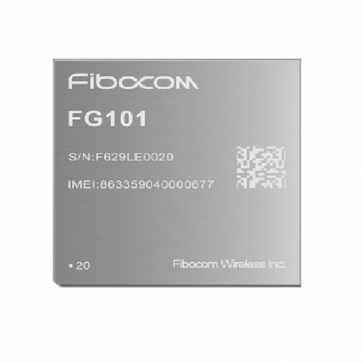

Fibocom FG101-NA-00 4G LTE Cat12 Module

Fibocom FG101-NA is a LGA form factor LTE wireless communication module which supports LTE-TDD/LTE-FDD/WCDMA 3 modes .The highest speed can reach Cat12 600Mbps DLand 150Mbps UL. It can cover North American mobile network and be used in industries such as CPE, STB, industrial 4.0 and Internet of Vehicles.

Fibocom FG101-NA-00 module specifications:

* LTE FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71

* LTE TDD: B41/48

* LAA: B46

* WCDMA: B2/4/5

* LGA: 37*39.5*2.8mm

* Temperature
- Normal Operation: -30~+75°C
- Extended operation: -40~+85°C
- Storage Temperature: -40~+90°C

* Operating Voltage: 3V~4.3V typical 3.8V

* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* TX Power
- WCDMA : 23.5dBm±2dBm
- LTE FDD: 23.0dBm±2dBm
- LTE TDD: 23.0dBm±2dBm

* Cat12 Speeds
LTE：UL：150Mbps DL：600Mbps
WCDMA：UL：5.76Mbps(Cat6) DL：42Mbps(Cat24)

* SMS: MO/MT Text and PDU modes

* Other: GNSS/LBS/CellID

* SIM Card: 1.8V/2.85V

* Antenna: Main/Div/MIMO1/MIMO2/GNSS

* Driver: Linux/ Android**

* Industry: GCF*/HF*/PTCRB*

* Regulation: IC*/FCC*/RoHS*

* Operator: ATT*/VZW*/TMO*
