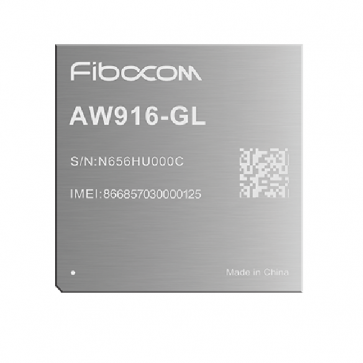

Fibocom AW916-GL WiFi 6 & BT5.1 Module

Fibocom AW916 is the latest high-performance WiFi6 and BT5.1 series module designed by FIBOCOM Auto Inc. Itadopts Qualcomm QCA6696 chip platform and supports WiFi6IEEE802.11 A/B/G/N/AC/AX standard and BT5.1 standard.

Fibocom AW916 supports BLE, high data transmission stability, maximum support 32 access points, can meet the application requirements of complex environments.

The compact LGA maximizes the endproduct's demand for small module products and helps customers effectively reduce product size and optimize product costs. Suitable for large-scale and automatic production, it can effectively reduce production costs and improve production efficiency.

Fibocom AW916 can transmit data to AN9585G vehicle grading module through PCIe interface, and is applied to the intelligent vehicle networking factory-installed Telematics market.

Fibocom AW916 was developed in accordance with the IATF16949 system, followed APQP quality process, supported PPAP submission standards, and met the environmental conditions and test standards of electronic equipment.

Fibocom AW916-GL module specifications:

* Chipset: Qualcomm QCA6696

* Functions: Wi-Fi6 2.4GHz + 5GHz& BT 5.1*

* WLAN Standard: 802.11a/b/g/n/ac/ax, 2x2 + 2x2, Dual MAC

* Modulation Mode: BPSK, QPSK, CCK, 16QAM, 64QAM, 256QAM, 1024QAM

* Encryption Mode: WPA3

* AP(Max Access Point): 32 Operation Mode: AP, STA

* OpenLinux: SDK/UMDP

* Dimensions: 23 x 23 x 6.25mm

* Package: LGA

* Operating Voltage
- VDD_RF：3.85V, VDD_IO: 1.8V
- VDD_CORE_V(L:0.95V; M:1.35V；H:1.95V)

* Temperature Range: -40~+85°C

* Antenna: 2 Antennas

* Data
- 802.11a: Max 54Mbps
- 802.11b: Max 11Mbps
- 802.11g: Max 54Mbps
- 802.11n: Max 150Mbps
- 802.11ac: Max 433Mbps
- 802.11ax: Max 1.775Gbps
- BT5.1: Max 2Mbps

* Interface:
- RF Antenna Interface × 2

* RX Sensitivity(2 x 2):
- 802.11ac/1SS MCS9_40: -64.5dBm（2GHz）
- 802.11ax/1SS MCS11_40: -64dBm（2GHz）
- 802.11ac/2SS MCS9_40: -62.5dBm（2GHz）
- 802.11ax/2SS MCS11_40: -61.5dBm（2GHz）
- 802.11ac/1SS MCS9_80: -62dBm（5GHz）
- 802.11ax/1SS MCS11_80: -61dBm（5GHz）
- 802.11ac/2SS MCS9_80: -58.5dBm（5GHz）
- 802.11ax/2SS MCS11_80: -58dBm（5GHz）

* TX Power(2 x 2):
- 802.11ac/MCS9 _40: 12dBm（2GHz）
- 802.11ax/MCS11_40: 12dBm（2GHz）
- 802.11ac/MCS9 _80: 12dBm（5GHz)
- 802.11ax/MCS11_80: 12dBm（5GHz)
