HUAWEI E5776 4G LTE Cat4 Mobile WiFi Hotspot

Without any doubt, Huawei is one of the leading companies in the world when it comes to quality and innovative LTE hardware. This time, HUAWEI E5776 4G LTE Router proves it again. Let’s have a look at what the router over the competition stands and where the benefits are. In addition, you will find all relevant key data as a table in the overview.



LTE features and characteristics of the E5776

Manufacturer and type designation

Huawei E5776

Download to rate

150 Mbit/s

Upload to rate

50 Mbit/s

supported LTE bands

LTE800, LTE900, LTE1800, LTE2100, LTE 2600

backward compatible with:

DC-HSPA +, UMTS, GSM frequencies (850, 900, 1800 and 1900 MHz)

MIMO Support:

MIMO 2×2

Connector for external antenna

yes, a antenna socket TS-9 is present

LTE category:

LTE modem, the Category 4 (3GPP Release 9)


802.11 b/g n  up to 300 Mbit s, up to 10 devices simultaneously


HiSilicon Hi6920


Battery operating time &

Not replaceable 3300 mAh battery, up to 10 hours of run time

Info display (front)

1.45 inch TFT display

Dimensions (LxWxH)

107 mm x 66 mm x 16 mm, 150 grams

USB standard

USB 2.0

Memory card expansion

Yes, MicroSD up to 32 GB

Compatible Operating Systems

All, only WLAN is mandatory

Overview Datasheet (English)

Not yet available

Manual PDF

Not yet available



Since March 2013, the Chinese manufacturer Huawei starts to sell a new mobile LTE Router with built-in battery: Huawei E5776.  Users could get cutting-edge technology that is packaged in a compact and very well designed housing. Highlight is almost up to 150 Mbit/s fast LTE data radio with certainly the strong 3300 mAh battery, which provides up to 10 hours operating time before the router must be connected to the power adapter again. So the Huawei E5776 is one of the first routers that are compatible with LTE 4 Category technology. With smart appearance and ability to charge power via USB like mobile phones, HUAWEI E5776 would be a shining star for the 4G consumer electronics.


HUAWEI E5776 4G LTE Cat4 Mobile WiFi has a 1.45-inch display, this is a rather ingenious feature for the users. This feature was first installed in a LTE router Easybox 904. Also on the front is the on-off switch with integrated LED. Beside that you will find a connector for external antennas, the SIM-card slot and a slot for a microSD memory card. The micro USB port is not just for charging the built-in and non-removable batteries, but also to connect to the computer when PC doesn’t support Wi-Fi.


With Wi-Fi 802.11 b/g/n, up to 10 wireless devices could get the Internet connection from HUAWEI E5776. Bases on LTE CAT 4, it’s possible to get up to 150 Mbit/s download and up to 50 Mbit/s upload. What’s more, backward compatibility with GSM and UMTS is given. Supporting for five LTE frequency bands (800, 900, 1800, 2100, 2600 MHz), the LTE mobile router HUAWEI E5776 could use in most European and Asian countries.



Recommends the purchase?


Despite the current relatively high price, we can wholeheartedly recommend the Huawei E5776. Better technology is currently unavailable in any other LTE routers and thus the model is extremely future-proof. As a slightly cheaper alternative, HUAWEI E5776 is identical to the Speedbox LTE mini Telekom, which has a software branding. Unlocked HUAWEI E5776 should be a good option to surf under 4G networks. Here now unlocked HUAWEI E5776 is available on . If you want to experience the fantastic speed from 4G, it’s necessary to get one.




HUAWEI E5776 Branch and Variants Models

As the world’s first Cat 4 LTE mobile WiFi hotspot, Huawei E5776 LTE Pocket WiFi is well known among the tech geeks and the consumers who want to surf in much higher speed than normal 4G speed. Huawei E5776 could support up to 150Mbps data transmission for download, what’s more, up to 10 users could share the WiFi network simultaneously. This should be the key features for Huawei E5776.



However, just like Huawei E392 and E398, E5776 is not the final model number, which means Huawei E5776 has extender model number. As we can see for Huawei E392, there are E392u-12, E392u-21, E392u-92, E392u-22, E392u-6 etc..Following the same design guide, Huawei E5776 has branch models as follow: Huawei E5776s-860, Huawei E5776s-32, Huawei E5776s-22, Huawei E5776s-501, Huawei E5776s-601 and Huawei E5776s-922. Here comes a question: what’s the difference between these variants models?


It’s a good question. If you get familiar with Huawei E398 or E392, you may know that they just incorporate different chipset or configuration for various 4G LTE spectrum & frequency bands. Except the color difference, Huawei E5776 also follows this rule.



Below are the branch models of Huawei E5776 and their supported frequency bands:

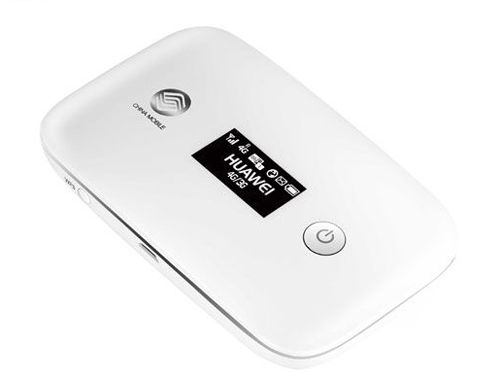

HUAWEI E5776s-860: (For China Mobile)


* LTE-TDD 2300/2600MHz

* LTE-FDD 2600MHz




HUAWEI E5776s-32: (For Europe)


* LTE FDD 800/900/1800/2100/2600MHz

* UMTS 900/2100MHz

* GSM 850/900/1800/1900MHz

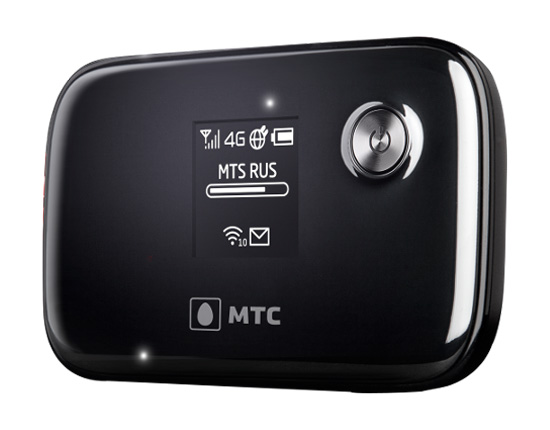

HUAWEI E5776s-22:(For MTS)


* LTE-TDD 2600 MHz

* LTE-FDD 800/1800/2600 MHz

* UMTS 900/2100 MHz

* GSM 900/1800 MHz


HUAWEI E5776s-501: Unknown yet


HUAWIE E5776s-922: Unknown yet


HUAWEI E5776s-601: Unknown yet



Since there are no official sayings about the branch models of Huawei E5776, we just collects the information from Internet. Best there is no more information about the three models Huawei E5776S-501, HUAWEI E5776s-922, HUAWEI E5776s-601, we leave it empty. These models do exist because they had already gotten the WiFi appliance certificate on


From the 4G frequency bands, user could choose the right one for them, just like choose a 4G USB modem.



However, here now we are not sure whether there will be new model available, actually, the current model of Huawei E5776 could support most the 4G LTE network. If you want one, welcome to buy from .


Will you choose HUAWEI E5756 or HUAWEI E5151 for Mobile WiFi?

Around the end of 2012, HUAWEI released two new 3G HSPA+ Mobile WiFi Hotspot, someone may ask, why not 4G LTE HUAWEI E5776 or HUAWEI E589? Yes, the two 4G LTE Pocket WiFi are definitely hot with fast development of 4G networks.


Today, we will not talk about the 4G mobile hotspot because for most of users, the 4G Gadgets are in high price range; they cost too much to enjoy something new. Only technology geeks are trying to follow new products. We choose HUAWEI E5756 and HUAWEI E5151 as our today’s topic because there is something special with the two models.


First, let’s look at HUAWEI E5756 42Mbps Mobile WiFi Hotspot. It’s like its predecessor HUAWEI E587, E586, E560, has the functions as E5, but supports 10 users to share WiFi network. With USB cable, one more device could access internet. And its peak speed reach up to 42Mbps under Dual cell HSPA+ technology. These features looks much like HUAWEI E587 42Mbps Mobile Hotspot, but HUAWEI E5756 have some special features such as it would work as a mobile power bank, which incorporates battery capacity of lasting 10 hours online usage. And it could output power to many devices such as iPhone, iPad, Android tablets or Smart phones. In case, if you are lucky to get HUAWEI E5756, you will get gadget with power bank and 3G WiFi router functions 2 in 1. What amazing!

HUAWEI E5756 Application at a meeting

By the way, we found HUAWEI E5756 could support IPV 6, which are not compatible with by most existed network devices. So with this powerful function and practical application functions, HUAWEI E5756 would be HUAWEI new flagship model in near future.

HUAWEI E5756 Applicaton at airport

Then let’s look at HUAWEI E5151 WAN LAN 3G WiFi Router, it has the basic function as 3G Pocket WiFi to supports 5 users to access internet, keeping working at 4 to 5 hours with changeable battery. Peak download speed via 3G is 21Mbps. The main difference and also its key features is that there is a Ethernet port at the side this device, which means, if you are outdoors, you could take it around to let it work as a portable router; when you back home or in office, it could get connected with the Ethernet cable, then it becomes a stationary router to offer wireless signal.

HUAWEI E5151 is the best partner for businessmen


With Ethernet cable, HUAWEI E5151 could support peak download speed at 100Mbps. If you are abroad for business trip, it would be better to take this one, because you don’t need to find the shop to buy SIM card, if there is Ethernet cable for network, your multiple electronics could share network simultaneously.

HUAWEI E5151 Application at a hotel to connect Ethernet cable

They are both in simple design and easy operation, and released for different application, but they are user friendly. Customer could choose the preferred one and enjoy the easy experience of surfing internet. In our opinion, if you have many electronics or gadgets demanding continuous power supply, it’s better to take HUAWEI E5756 Mobile Power Bank Router, but if you are a businessman who usually goes to different countries or areas, it’s better to take HUAWEI E5151 WAN LAN WiFi Router.


If you want to know more option for mobile WiFi hotspot, please visit: .

Huawei E5776 4G LTE Pocket WiFi General Review

4G era is coming, the vendors all over the world are trying their best to win in the game. As the top euipments supplier in China, it seems HUAWEI is leading the trend towards to LTE. HUAWEI E5776 4G LTE Pocket WiFi comes out during this time.

HUAWEI E5776 4G LTE Mobile WiFi Hotspot
HUAWEI E5776 4G LTE Mobile WiFi Hotspot

Folloing HUAWEI E589 4G LTE Mobile Pocket WiFi, HUAWEI E5776 4G LTE Router has many improvements in features. First and most importantly, HUAWEI E5776 4G Router supports up to 150Mbps download speed, which is almost the fastest speed that a 4G device could support. Since LTE –Advanced technology is applying; HUAWEI E5776 is somewhat like LTE-advanced gadget.

HUAWEI E5776 4G LTE Mobile WiFi Hotspot
HUAWEI E5776 4G LTE Mobile WiFi Hotspot

As the 4th generation of HUAWEI E5, we could see the workmanship and design is more simple and easier to operate for users. It’s still classy black like HUAWEI E589, with the horizontal display and compact design with 150 grams. There is three buttons on this 4G hotspot, on the face is the power button, two sides are WPS and Reset button. For users, just press power button and it will auto connect to the fastest network available. If 4G is not available, it will auto jump to 3G network connection and choose the fastest network so as to give use best surf experience. Below are the specs for reference.


HUAWEI E5776 4G Hotspot Highlights & Details:

* LTE Mobile Hotspot for up to 10 devices

* Supports download speeds of up to 150 Mbit / s

* Controlled by “WiFi Mobile” app (Android ™, iOS)

* Battery life of approximately 10 hours

* Status display in 3.7 cm (1.45 “) TFT display

* Working time: 8-10 hours

* Battery: Li-Polymer, 3300 mAh

Everything under control:

The freely available “Mobile WiFi” app allows you to control and monitor the device on Android ™ – ® or iOS smartphones and tablets during her through SD Share pictures, documents, music and video files, you can share with friends.

Mobile Flexibility

Up to 10 devices can you with up to 300 Mbit/s to connect with a local wireless network – with a running time of approximately 10 hours, ensures full power of 3300 mAh battery. Thanks to the built-in battery you can also easily invite other devices via USB.

Simple and straightforward

Another highlight of the wifi device: The E5776 is compatible with all popular wireless devices and can be configured using any web browser.

System Requirements

* Windows ® XP (at least SP2)

* Windows Vista ™ (min. SP2)

* Windows ® 7

* Windows ® 8

* ™ Mac OS X 10.5 or later

* Linux ™ Kernel 2.6.18 or higher

* Each WLAN-enabled operating system

From Huawei E5776, we could see that HUAWEI is leading the 4G LTE technology and will release more and 4G LTE mobile broadband for better surfing.

Huawei E5776 4G 150Mbps LTE Mobile Hotspot

The Huawei E5776 4G LTE Router is the first mobile WiFi device that supports the new LTE network at 150mbps dowmload speed. In elegant black, with the horizontal display and compact design with 150 grams, HUAWEI E5776 4G Mobile WiFi Hotspot not only supports breathtaking speed but also with arractive appearance and makes everything under control, which allows the freely available “Mobile WiFi” app you to control and monitor the device on Android ™ – ® or iOS smartphones and tablets during her through SD Share images, documents, share music and video files with friends.


HUAWEI E5776 is a wifi router of mobile flexibility. Up to 10 devices can share wireless network with up to 300 Mbit/ – which provides for a period of around 10 hours for the power full 3300 mAh battery. Thanks to the built-in battery, you can also easily add another one devices via USB. Another highlight of the WiFi device is that the E5776 mobile 4G router is compatible with all popular wireless devices and can be configured using any web browser.

Huawei E5776 4G 150Mbps LTE Mobile Hotspot
Huawei E5776 4G 150Mbps LTE Mobile Hotspot

Highlights & Details

  • LTE mobile hotspot for up to 10 devices
  • Download speeds of up to 150 Mbit/s support
  • Controllable via “Mobile WiFi” app (Android ™, iOS)
  • Battery life of approximately 10 hours
  • Status display in 3.7 cm (1.45 “) TFT display

Huawei E5776 4G 150Mbps LTE Mobile Hotspot Specs
Huawei E5776 4G 150Mbps LTE Mobile Hotspot Specs

System Requirements

  • Windows ® XP (at least SP2)
  • Windows Vista ™ (min. SP2)
  • Windows ® 7
  • Windows ® 8
  • Mac OS ™ X 10.5 or later
  • Linux ™ Kernel 2.6.18 or higher
  • Each WLAN-enabled operating system


  • Working time: 8-10 hours
  • Battery: Li-Polymer, 3300 mAh
Huawei E589 4G LTE Mobile Pocket WiFi Hotspot
Huawei E589 4G LTE Mobile Pocket WiFi Hotspot

Compare with its predecessor of HUAWEI E589 4G LTE Pocket WiFi, HUAWEI E5776 is almost the newest model for LTE-Advanced up to 150Mbps. Currently, we didn’t find the other one mobile hotspot which can reach this speed and cover such LTE bands.
