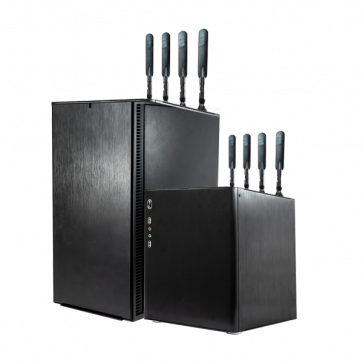

AMARI UE Simbox

AMARI UE Simbox is an ideal solution to support functional and performance testing of LTE eNodeB, 5G NR gNodeB in NSA or SA mode as well as LTE and 5G core networks.

One single AMARI UE Simbox can simulate hundreds UEs sharing the same spectrum with different types of traffic within multiple cells. Each UE can be configured independently as LTE, 5G NR, NB-IoT or LTE-M device.

The offer is completed by an integrated IP simulation package for reproducible test results.

PC Specifications
------------------------------------------
Dimensions(H x W x D): 45,5 cm × 40 cm × 20,5 cm
Weight: 13 kg
Number of PCIe SDR Cards: 4
Power supply voltage: 230V AC input
CPU: Intel Core i9
Operating System: Linux Fedora

PCIe SDR Specifications
------------------------------------------
Dimensions(H x W x D): 2 cm × 11.5 cm × 12.8 cm
Weight: 0.1 kg
Power supply voltage: 12 V DC input
RF Coverage: 500 MHz to 6.0 GHz
RF bandwidth: 200 KHz to 56 MHz
Wireless range: 10 meters
Operation mode: FDD and TDD
MIMO: DL 2x2

UE Simulator 4G technical specifications
------------------------------------------
3GPP Specification: LTE Release 8 support with features up to Release 15
Frequency bands: All FDD and TDD sub-6GHz bands with support of custom frequencies
Bandwidth:
* 1.4, 3, 5, 10, 15 and 20 MHz
* 200 KHz for NB-IoT
Carrier aggregation: up to 4 carriers in DL and 2 carriers in UL
MIMO: DL MIMO support up to 4x4
Modulation schemes: up to 256Q AM in DL and UL
AS encryption and integrity protection: AES, SNOW3G, ZUC
Handover: Intra-freq, inter-freq and inter-band Handovers
Group communication: eMBMS as per Rel10
IoT: LTE category 0 and 1, LTE-M cat M1, NB-IoT cat NB1 and NB2 UE categories
UE categories: Cat0, Cat1, cat 3, cat 4, cat 15 with 4CCs in DL and cat 13 with 2 CCs in UL
Number of active users: 1000+ UEs (see table page 4 for details)
Number of active cells: 4 cells MIMO 2x2 or 2 cell MIMO 4x4
IP traffic: Simulation of TCP, UDP, RTP, HTTP and VoIP with configurable packet size as well as support of external applications such as iperf

UE Simulator 5G technical specifications
------------------------------------------
3GPP Specifications: Release 15
Frequency bands: All FDD and TDD sub-6GHz bands with support of custom frequencies
Bandwidth: Up to 50 MHz
MIMO: Up to MIMO 4x4 in DL
Modulation schemes: Up to 256QAM in DL and UL
Subcarrier spacing: All SSB/data subcarrier spacing combination
Supported modes: NSA, SA
NSA NR Split Bearer: 3, 3a and 3x
Use case: eMBB
Number of active users: 64 UEs
Number of active cells: 2 cells
IP traffic: Simulation of TCP, UDP, RTP, HTTP and VoIP with configurable packet size as well as support of external applications such as iperf
