AMARI Callbox Ultimate

AMARI Callbox Ultimate is the ideal solution for testing 5G NSA and SA, LTE, LTE-M and NB-IoT devices. It acts as a 3GPP compliant eNB and EPC allowing functional and performance testing.


AMARI Callbox Ultimate includes the best of Amarisoft 5G technology providing 2 NR cells 100 MHz 4x4 and 2 cells 20MHz 4x4 at the same time.

Sign up for price alert

Availability: In stock

$108,999.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

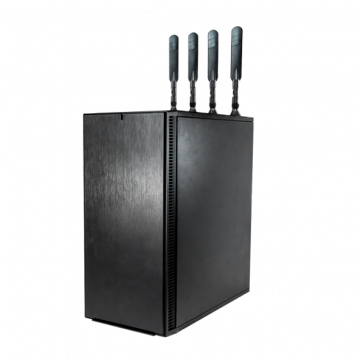

Packaged in a plug and play integrated PC, AMARI Callbox Ultimate is an ideal solution for LTE and NR testing of all types of user equipment with advanced configuration.

It acts as a 3GPP compliant eNodeB, gNodeB, EPC and 5GC allowing functional and performance testing of NR, LTE, LTE-A, LTE-M and NB-IoT devices. The offer is completed by an integrated IMS server as well as an eMBMS gateway for VoLTE and eMBMs testing.

The Callbox Ultimate is powered by a deployment quality LTE and NR software suite offering the same level of baseband functionality as an indoor/outdoor network.


PC Specifications
------------------------------------------
Dimensions(H x W x D): 46.5 cm × 23.3 cm × 53.3 cm
Weight: 14 kg
Number of PCIe SDR Cards: 4
Power supply voltage: 100-240V AC
CPU: X86 architecture
Operating System: Linux Fedora


PCIe SDR Specifications
------------------------------------------
Dimensions(H x W x D): 2 cm × 11.5 cm × 21 cm
Weight: 0.28 kg
Power supply voltage: 12 V DC input
RF Coverage: 500 MHz to 6.0 GHz
RF bandwidth: 200 KHz to 100 MHz
Wireless range: 10 meters
Operation mode: FDD and TDD
MIMO: DL 4x4

eNodeB Technical Specifications
------------------------------------------
3GPP release: LTE release 14
Frequency bands: All FDD and TDD bands in sub-6GHz
Bandwidth:
* 1.4, 3, 5, 10, 15 and 20 MHz in LTE
* 200 KHz for NB-IoT supporting all operation modes (in-band, guard band and standalone).
Supported number of UEs: Up to 1000 UEs distributed within the configured cells
UE category:
* 0/1/2/3/4/5/6/7/9/10/11/12
* DL category up to 20
* UL category up to 13
Carrier aggregation: Up to 8 carriers in DL and 3 in UL allowing mixed FDD/TDD combinations in DL
Transmission modes: 1 (single antenna) and 2 to 10 (MIMO 4x4)
Modulation schemes: Up to 1024QAM in DL and 64QAM in UL
AS encryption and integrity protection: AES, SNOW3G, ZUC
Handover: Intra eNodeB, S1 and X2 handover support
IoT:
* LTE category 0 and 1
* LTE-M cat M1
* NB-IoT cat NB1 and NB2
NB-IoT subcarrier spacing: 15 kHz and 3.75 kHz
Network interfaces:
* S1AP and GTP-U to EPC
* X2AP between eNodeBs
* M1 and M2 for eMBMS


gNodeB Technical Specifications
------------------------------------------
3GPP release: Release 15
Frequency bands: FDD/TDD FR1 (< 6 GHz)
Bandwidth: Up to 100 MHz
MIMO: Up to MIMO 4x4 in DL
Subcarrier spacing: All SSB/data subcarrier spacing combinations
Modulation schemes: Up to 256QAM in DL and 256QAM in UL
Supported modes: NSA, SA
NR Split Bearer: 3, 3a and 3x
Use case: eMBB
Network interfaces: NG interface (NGAP and GTP-U) to 5GC
Carrier Aggregation: Up to 2 carriers in SA and NSA

Supported number of cells
------------------------------------------
Max number of LTE cells: 8
Max number 5G cells: 2
Max total number of cells: 8


Configuration examples
------------------------------------------
4G LTE: 8CC 20MHz 2x2, 4CC 20MHz 4x4
5G NR NSA: 2 5G NR TDD 100MHz 4x4 + 2 LTE 20MHz 4x4 or 2 5G NR FDD 50 MHz 4x4 + 2 LTE 20MHz 4x4
5G NR SA: 2 5G NR TDD 100MHz 4x4 or 2 5G NR FDD 50 MHz 4x4
NB-IoT: 8 NB-IoT standalone cells, 8 LTE cells with 8 in-band or guard-band NB-IoT cells
LTE-M: 8 LTE cells with CAT M1 support


EPC Technical Specifications
------------------------------------------
Network elements: Mobility Management Entity (MME), Serving Gateway (SGW), Packet Data Network Gateway (PGW), and Home Subscriber Server (HSS) all integrated within the same software component
3GPP release: Release 14
NAS encryption and integrity protection: AES, SNOW3G, ZUC
USIM authentication: XOR, Milenage, TUAK
IP version: IPv4 and IPv6
QoS: Support of all LTE QCIs as well TFT and dedicated bearers
Handover: S1 based support
Network interfaces
* S1AP and GTP-U to eNodeB
* RX for external IMS server
* S6a for optional external HSS
RAT: NR, LTE, NB-IoT
CIoT features: control plane CIoT optimization, Non IP data delivery, Attach without PDN connectivity
Power saving features: PSM and extended DRX


IMS Server Technical Specifications
------------------------------------------
Network Elements: Proxy-CSCF (P-CSCF), Interrogating-CSCF (I-CSCF), Serving-CSCF (S-CSCF), and Home Subscriber Server (HSS) all integrated within the same software component
ISIM authentication: XOR, Milenage, TUAK
Security features: MD5, AKAv1 and AKAv2 for authentication and IPSec at transport level
Network interfaces:
* Rx interface for support of precondition and dedicated bearer
* Cx interface for external authentication
IP versions: IPv4 and IPv6
Services: Voice call, Video call, Voice echo test, Call hold, SMS over SIP and SMS over SG


eMBMS Gateway Technical Specifications
------------------------------------------
Network Elements: LTE eMBMS Gateway (eMBMS-GW) and Multi-cell Coordination Entity (MCU)
Network interfaces:
* M1 interface to eNodeB for user plane
* M2AP interface to eNodeB for control plane

5G Core Technical Specifications
------------------------------------------
Network elements: Access and Mobility Management Function (AMF), Authentication Server Function (AUSF), Session Management Function (SMF) and User plane Function(UPF) all integrated within the same software component
3GPP release: Release 15
NAS encryption and integrity protection: AES, SNOW3G, ZUC
USIM authentication: XOR, Milenage, TUAK 5G-AKA
IP version: IPv4, IPv4v6, IPv6 and unstructured PDUs support
QoS: Configurable QoS flows
PDU: Multi PDU sessions support
Network interfaces:
* NG interface (NGAP and GTP-U protocols) to several gNodeBs
* RX for external IMS server
