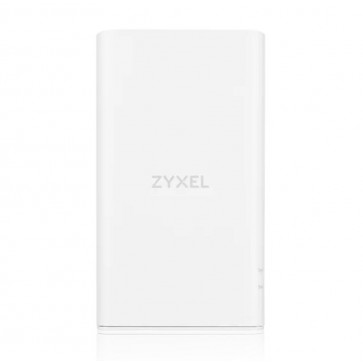

Zyxel NR7301 NR7302 NR7303 5G NR Outdoor Router

Zyxel 5G NR Outdoor Router - NR7301/NR7302/NR7303 Series delivers exceptional performance for both subscribers and service providers. With ultra-high speeds, large capacity, low latency, and truly dependable coverage, the Series boasts unmatched performance and provides an outstanding user experience. Thanks to our in-house app and installation kit, you can also reduce deployment and service call costs with our purpose-built Series, which is easy to set up and manage.

Lightning-fast FWA connectivity, no strings attached
---------------------------------------------------------------------
The Series supports 3GPP Rel. 15 to help you deliver high-speed broadband in an era of latency-sensitive 5G applications. Deploying the Series in an FWA environment allows you to extend 5G coverage into your subscribers’ homes and workplaces without extra wire infrastructure.

Superior antennas for full spectrum coverage
---------------------------------------------------------------------
With built-in 4x4 MIMO high-gain antennas, each up to 9 dBi per element, the Series helps you deliver consistently strong signal performance for high-bandwidth 5G. With carrier aggregation, the Series capitalizes on more of the available spectrum resource.

Take control with remote management
---------------------------------------------------------------------
The Series comes with built-in TR-069 remote management features that greatly shorten service time-to-market with reduced testing and configuration time. By utilizing Firmware Over-The-Air (FOTA), you can also:

• Process remote configuration
• Upgrade software
• Run diagnostics
• Provide dedicated support management

Weather-resistant and compact design for installation everywhere
---------------------------------------------------------------------
With its multi-type installation kit, the Series can be installed in numerous positions, including wall-mounted, pole-mounted, window sill-mounted, and window-mounted. This outdoor router is IP67-compliant and 6KV lightning protected, so it can withstand the harshest environments while providing uninterrupted service.

The result is fewer support calls from your subscribers—leading to higher satisfaction and lower service expenses.

Zyxel NR7301/NR7302/NR7303 5G Router Specifications：

Zyxel NR7301：

* 5G NR：Sub-6 GHz, NR 2CC
* Channel bandwidth：120 MHz
* LTE Category： Cat 19 (5CC)
# of Ethernet： 1x 2.5GbE
* DL/UL： 3.4 Gbps/550 Mbps
* Build-in antennas：9 dBi
* Remote management： TR-369/TR-069

Zyxel NR7302：

* 5G NR：Sub-6 GHz, NR 3CC
* Channel bandwidth：200 MHz
* LTE Category： Cat 20 (5CC)
# of Ethernet： 1x 2.5GbE
* DL/UL： 4.0 Gbps/550 Mbps
* Build-in antennas：9 dBi
* Remote management： TR-369/TR-069

Zyxel NR7303：

* 5G NR：Sub-6 GHz, NR 2CC
* Channel bandwidth：200 MHz
* LTE Category： Cat 19 (5CC)
# of Ethernet： 1x 2.5GbE
* DL/UL： 4.67 Gbps/2.5Gbps
* Build-in antennas：9 dBi
* Remote management： TR-369/TR-069
