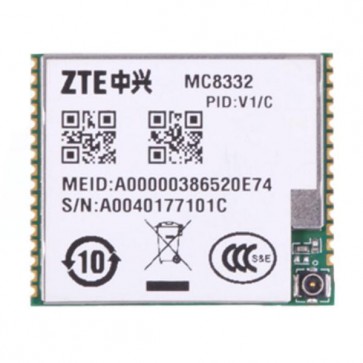

ZTE MC8332 CDMA Module
* LCC Form Factor
* Easy to intergrate
* Embedded FTP Stack
* Ultra Compact
* 8-Wires UART
* DL:153.6Kbps/UL:153.6Kbps
Availability: In stock
ZTE MC8332 is a CDMA module in LCC castellation packaging with compact size, ultra low power consumption and extended temperature range. ZTE MC8332 also allows the integration of automotive and other applications requiring assured extended operating temperature range and mechanical ruggedness within the ever-shrinking space inside electronic bays in trucks, automobiles, and other mobile platforms. ZTE MC8332 could be used such as metering, tracking systems, security solutions, routers, wireless POS, mobile computing devices, PDAs, tablet PC and so on.
ZTE MC8332 Highlights:
* LCC Form Factor
* Easy to intergrate
* Embedded FTP Stack
* Ultra Compact
* 8-Wires UART
* DL:153.6Kbps/UL:153.6Kbps
ZTE MC8332 Specifications:
* Network: CDMA2000 1X
* Frequency band: 800MHz
* Dimensions: 30.0×25.0×2.68 mm
* Temperature: -30℃~+75℃
* Voltage: 3.3V~4.25V/typical 3.9V
* Consumption: About 5mA standby current
* Interface: 30 Pin stamp-hole mounting
* USB interface: No
* Driver: No
* Data rate: DL:153.6Kbps/UL:153.6Kbps
* Function: Data/SMS
* Commands: Standard AT commands/ZTE exclusive commands
* Certifications: CCC/CMIIT/CTA
