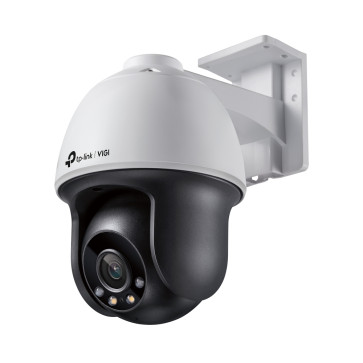

TP-Link VIGI C540 4MP Outdoor Full-Color Pan Tilt Network Camera

Highlight Features:

* 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.

* 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

* Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.

* Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

* Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

* Automatic Tracking: Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.

* Active Defense: Warn potential intruders instantly with sound and light when abnormal events.

* Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

* H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

* Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

* IP66 Waterproof: Reliable IP66 for stable outdoor performance.

* PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

* Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot* (up to 512 GB).

TP-Link VIGI C540 Network Camera Specifications:

CAMERA
----------------------------------------------------------------
Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto

LENS
----------------------------------------------------------------
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.6
FOV:

4mm
Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount: M12

DORI Distance:
4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

PTZ
----------------------------------------------------------------
Pan/tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°

Pan/tilt Speed:
Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s

Manual Control Speed: Configurable from 8° to 35°/s
Presets: 300
Patrol Scan: 8 patrols, up to 8 presets for each patrol

Power-off Memory:
Yes;
Auto restore to previous PT and lens status after power failure

Park Action: Yes;
Preset; Patrol Scan

3D Positioning: Yes

Angle Adjustment (Manual)
----------------------------------------------------------------
Range:
Pan: 0° to 348°
Tilt: 0° to 120°

ILLUMINATOR
----------------------------------------------------------------
IR LED:
Quantity: 2
Range: 30m
Wavelength: 850nm

White LED:
Quantity: 2
Range: 30m

Illuminator: On/Off Control Auto/Scheduled/Always on/Always off

----------------------------------------------------------------
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

AUDIO
----------------------------------------------------------------
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output : Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
----------------------------------------------------------------
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI

Web Browser: Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above

Cloud: Yes

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
----------------------------------------------------------------
Smart Event
• Area Intrusion Detection
• Line-Crossing Detection
• People Detection
• Vehicle Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Abnormal Sound Detection

Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)

Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method: N/A

Output Notification: Message Push

INTERFACES
----------------------------------------------------------------
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker: Yes
Audio: N/A

GENERAL
----------------------------------------------------------------
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)

Package Content:
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Material: Plastic
Power Supply :
12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 4, Max. 16 W

Protection: IP66
Product Dimensions (L x W x H): 120 × 172 × 198 mm
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
