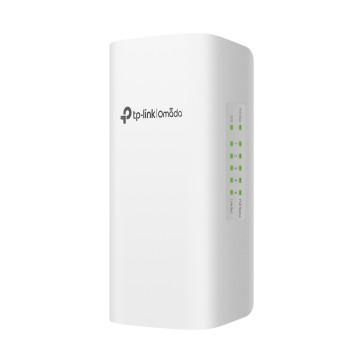

TP-Link TL-SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

TP-Link TL-SG2005P-PD Gigabit Smart Switch Specifications:

HARDWARE FEATURES
--------------------------------------------------------------
* Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

* Interface：
• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)

Network Media：
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

* Fan Quantity: Fanless

* Power Supply: Obtain Power from 802.3af/at/bt PoE Source

* PoE Ports (RJ45)
• PoE In Port: Port 5, Compliance with 802.3af/at/bt
• PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE
• PoE Power Budget:
-64 W when powered by 802.3bt Type 4 (90 W)
-44 W when powered by 802.3bt Type 3 (60 W)
-19 W when powered by 802.3at
-6 W when powered by 802.3af

* Dimensions ( W x D x H ): 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)

* Max Power Consumption: 71.5 W (when powered by 802.3bt Type 4 (90 W))

* Max Heat Dissipation: 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))

PERFORMANCE
--------------------------------------------------------------
* Switching Capacity: 10 Gbps

* Packet Forwarding Rate: 7.44 Mpps

* MAC Address Table: 8K

* Packet Buffer Memory: 4.1 Mbit

* Jumbo Frame: 9 KB

SOFTWARE FEATURES
--------------------------------------------------------------
* Quality of Service
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

* L2 and L2+ Features
• 32 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

* L2 Multicast
• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
• Limited IP Multicast (256 profiles and 16 entries per profile)

* Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

* VLAN
• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

* Access Control List
• Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark

* Security
• AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

* IPv6
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

* MIBs
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

Management Features
--------------------------------------------------------------
Omada App: Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

OTHERS
--------------------------------------------------------------
* Certification: FCC, CE, RoHS

* Package Contents
• SG2005P-PD
• Mounting Kits
• Installation Guide

* System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

* Environment
• Operating Temperature: -40 to 60 °C (-40 to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
