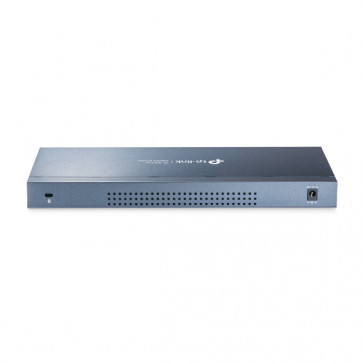

TP-Link TL-SG116 16-Port Gigabit Desktop Switch
* TP-Link Gigabit Desktop Switch
* 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
* IEEE 802.3x flow control provides reliable data transfer
* Support 802.1p/DSCP QoS and IGMP Snooping function
* Steel housing, desktop or wall-mounting design
Availability: In stock
TP-Link TL-SG116 Switch Highlight Features:
* 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
* Green Ethernet technology saves power consumption
* IEEE 802.3x flow control provides reliable data transfer
* Steel housing, desktop or wall-mounting design
* Support 802.1p/DSCP QoS and IGMP Snooping function
* Plug and play, with no configuration needed
TP-Link TL-SG116 Switch Specifications:
HARDWARE FEATURES
* Standards and Protocols: IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
* Interface
• 16 × 10/100/1000Mbps Ports
• Auto-Negotiation, Auto-MDI/MDIX
* Fan Quantity: Fanless
* Physical Security Lock: Yes
* Power Supply:
External Power Adapter 100VAC ~ 240VAC
(Output: 12VDC / 1.0A)
* LED Indicator: System Power
Link/Act indicators per port built into each RJ-45 port
* Max Power Consumption:10W
* Dimensions ( W x D x H ): 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
* Max Heat Dissipation: 34.1 BTU/h
PERFORMANCE
* Packet Forwarding Rate: 23.81Mpps
* MAC Address Table: 8K
* Packet Buffer Memory: 4.1 Mbit
* Jumbo Frame: 10 KB
SOFTWARE FEATURES
* Quality of Service
Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
* Transfer Method: Store and Forward
OTHERS
* Certification: FCC, RoHS
* Package Contents
• 16-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
• Rubber Feet
* Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
