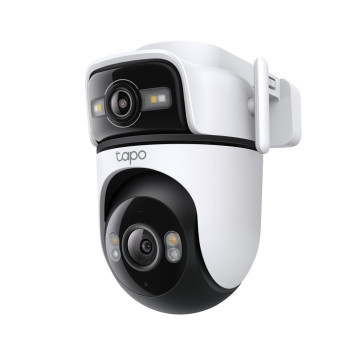

TP-Link TAPO C545D Outdoor Dual Lens Security Wi-Fi Camera

TP-Link TAPO C545D Security Wi-Fi Camera Specifcations:

CAMERA
----------------------------------------------------
Image Sensor: 1/2.8” Progressive Scan CMOS Starlight Sensor
Lens:
- Focal Length: 6 mm ± 5%, 2.53 mm±5%
- Aperture: F1.6 ± 10%, F1.6 ± 10%
- Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical); 165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical)

Night Vision
- 850 nm IR LED
- Color Night Vision

Interface & Button
- 1× RJ45 (10M/100M) Ethernet Port
- 1× RESET Button
- 1× MicroSD Card Slot (Up to 512GB)

VIDEO & AUDIO
----------------------------------------------------
Maximum Resolution: 2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px)
Frame Rate: 15 fps
Digital Zoom: 18x
Video Compression: H.264
Live View: Yes
Image Enhancement: 3DNR, WDR
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 99 dB (Level measured at 4-inch/10-cm distance)

Storage
----------------------------------------------------
Local Storage microSD Card Slot on Camera (Up to 512 GB)
Cloud Storage Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
----------------------------------------------------
AI Detection:
- Motion Detection
- Person Detection
- Pet Detection
- Vehicle Detection
- Line-Crossing Detection
- Camera Tampering

Activity Zones: Yes

Output Notification:
- System Notification
- System Notification with Snapshot (Tapo Care Services)

NETWORK
----------------------------------------------------
Network Connectivity: Connect via Wi-Fi or Ethernet
Wireless Connectivity: IEEE 802.11a/b/g/n/ax, 2.4 GHz

Transmission Rate：
11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps
11ax: 143.4 Mbps

Ethernet Port: Yes
RTSP: Yes
ONVIF: Yes

SECURITY
----------------------------------------------------
Security: SSL/TLS,AES

POWER
----------------------------------------------------
Power Source: 12V DC Power Adapter
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 12 V, 1 A (DC Power)

GENERAL
----------------------------------------------------
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP66
System Requirements: Tapo App: iOS 12.0+ and Android 5.0+ operating systems.
Mounting Options
- Wall-Mounted
- Eave-Mounted
- Pole-Mounted

Operating Temperature: -30℃~60℃ (-22°F~140°F)
Storage Temperature: -40℃~60℃ (-40°F~140°F)
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 10~90% RH, Non-condensing
Dimensions ( W x D x H ):
4.51 × 6.28 × 5.99 in (114.57 × 159.55 × 152.1 mm

Package Content
- Tapo C545D Camera ×1
- Mounting Bracket ×1
- Mounting Template Sticker ×1
- Mounting Screws ×4
- Mounting Anchors ×4
- Waterproof Seal ×1
- Waterproof Cable Attachments ×1
- Power Adapter ×1
- Quick Start Guide

Certifications: FCC, RoHS, RCM
