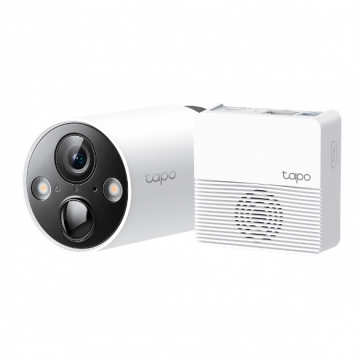

TP-Link Tapo C420S1 Smart Wire-Free Security Camera System(1-Camera System)

Highlight Features:

* 2K QHD-Now with 1.7 times more pixels than 1080p, providing clearer videos and photos.

* 180-Day Battery Life-The rechargeable and removable battery with a low-power protocol extends your usage.*

* Full-Color Night Vision-Reveal high-fidelity details and color at night with the starlight sensor.

* Smart AI Detection and Notification-Smart AI identifies people, pets, and cars, notifying users as needed.

* Wire-Free Placement-No wires means you can place the cameras almost anywhere inside or outside-whatever works for you!

* Light and Sound Alarm-Triggers sound and light as an alarm when motion is detected.

* Two-Way Audio-Enables communication through a built-in microphone and speaker.

* Flexible Storage Choices-Save recorded videos on the hub-installed microSD card† (up to 512 GB) or by using Tapo Care‡ cloud storage services.

* IP65 Water&Dust Resistant-Offers excellent waterproof and dustproof performance for outdoor scenarios.

TP-Link Tapo C420S1 Security Camera Specificaitons:

CAMERA
-------------------------------------------
Image Sensor: 1/3“
Lens: F/NO: 1.61±10%; Focal Length: 3.18mm±5%
Night Vision: 850 nm IR LED up to 49 ft/15m
Lighting: 2× Built-in Spotlights
Interface & Button : 1× SYNC/RESET Button
Hub Compatibility: Compatible with Tapo H200 (Included)
Viewing Angle: 113°
Resolution: 2K QHD (2560 × 1440 px)

HUB
-------------------------------------------
Device Compatibility: Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
All Supported Products>
Connection Capacity: Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
Interface & Button:
1× Ethernet Port
1× RESET Button
1× SYNC Button
1× MicroSD Card Slot (Up to 512 GB)

VIDEO & AUDIO
-------------------------------------------
Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
Frame Rate: 15 fps/20 fps
Digital Zoom: 12×
Video Compression: H.264
Live View: Yes
Image Enhancement: 3DNR, WDR
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation

Siren Volume:
Camera: 92 dB (Level measured at 4-inch/10-cm distance)
Hub: 100 dB (Level measured at 4-inch/10-cm distance)　

STORAGE
-------------------------------------------
Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS
-------------------------------------------
Sensor:
Single Motion Sensor (FOV: 110° horizontal)
Single Ambient Light Sensors

AI Detection:
Motion Detection
Person Detection
Pet Detection
Vehicle Detection

Activity Zones: Yes

Output Notification :
System Notification
System Notification with Snapshot (Tapo Care Services)

AUDIO
-------------------------------------------
Audio Communication: 2-way audio
Audio Input & Output: Built-in microphone and speaker

NETWORK
-------------------------------------------
Network Connectivity: Connect via Wi-Fi or Ethernet　
Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port: 1× 10/100 Mbps RJ45 Port on Hub
Wireless Security: WPA/WPA2-PSK
Wi-Fi Protocol: IEEE 802.11b/g/n, 2.4 GHz
Frequency: 2.4 GHz

SECURITY
-------------------------------------------
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER
-------------------------------------------
Power Source: Hub： 9V DC Power Adapter

Camera：
6700 mAh Removable Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200 (Sold separately)

Input Voltage: Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A

Output Voltage: Camera Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A

GENERAL
-------------------------------------------
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: Camera: IP65
System Requirements : Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher

Mounting Options:
Tabletop
Ceiling-Mounted
Wall-Mounted　

Operating Temperature:
Camera: -20℃~45℃
Hub: 0℃~40℃
Storage Temperature: -20℃~60℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 5%~90% RH, Non-condensing
Charging Temperature: 0-55℃

Dimensions: Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm)
Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)

Package Contents:
Tapo C420 Camera
Tapo A100 Battery
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Anchors
Mounting Screws
Mounting Template
Camera Bracket
Quick Start Guide
RJ45 Ethernet Cable

Certifications: CE, FCC, RoHS, RCM

ACTIVITY NOTIFICATIONS
-------------------------------------------
Input Trigger:
Motion detection, Person detection, Pet detection, Vehicle detection.
Output Notification: Notification,Snapshot(Tapo care),Clips(Tapo
care).

ENVIRONMENT
-------------------------------------------
Operating Temperature: -20℃~45℃(-4°F ~113 °F )
Storage Temperature: -20℃~60℃ (-4°F~140°F)
Operating Humidity: 10%~90%RH, Non-condensing
Storage Humidity: 5%~90%RH, Non-condensing

PACKAGE CONTENTS
-------------------------------------------
Tapo C420 Cameras (Battery Included)
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Screws
Mounting Templates
Camera Brackets
Quick Start Guide
RJ45 Ethernet Cable

HARDWARE
-------------------------------------------
Button: Camera Button: Reset/SYNC Button
Hub Button: Reset Button; SYNC Button
Indicator LED: Camera Indicator LED: System LED
Hub Indicator LED: System LED
Adapter Input: Camera Adapter Input: 100-240V, 50/60Hz
Hub Adapter Input: 100-240V, 50/60Hz, 0.3A
Adapter Output: Camera Adapter Output: 5.0V, 1.0A
Hub Adapter Output: 9.0V, 0.85A
Dimensions (W x D x H): Camera Dimensions: 4.35 x 2.52 x 2.52in.
(110.6*64.2*64.2mm)
Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in.
(71.45*71.45*31.25mm)

VIDEO/IMAGE
-------------------------------------------
Video Compression: H.264
Frame Rate & Resolutions: 15/20 fps
Video Streaming: 2K QHD
