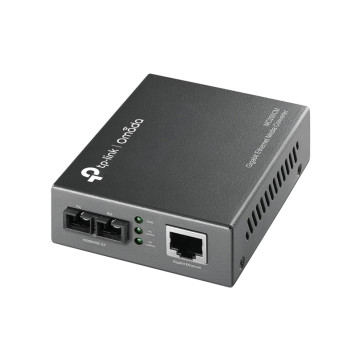

TP-Link Omada MC200CM Gigabit Multi-Mode Media Converter

TP-Link Omada MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

TP-Link MC200CM Gigabit Multi-Mode Media Converter Specifications:

* Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

* Basic Function
Extends fibre distance up to 0.55km using 50/125um fibre
Extends fibre distance up to 0.22km using 62.5/125um fibre

* Ports
1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX)

* Wave Length: 850nm

* Network Media 1000BASE-SX: Multi-mode Fiber

* Network Media 1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

* LED Indicators: PWR, Link/Act

* Dimensions (W*D*H): 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

* Power Supply: External Power Adapter

* Max Power Consumption: 1.66W

* Safety & Emission: FCC, CE, RoHS

* Package Contents
• Media Converter MC200CM
• Power Adapter
• Installation Guide

* Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
