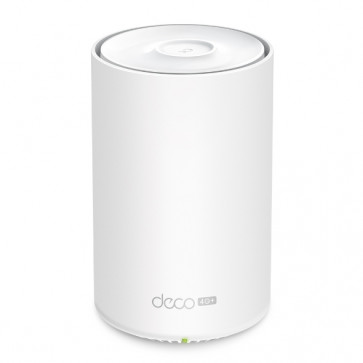

TP-Link Deco X20-4G 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway

Highlight Features：

* Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access

* Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology

* Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed**

* TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports

* 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss

TP-Link Deco X20-4G Mesh WiFi 6 Gateway Specifications:

* Standards: Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

* WiFi Speeds: AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)

* WiFi Range:
1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2 LTE antennas, 2 Wi-Fi antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

* WiFi Capacity: High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

4 Streams
More than enough bandwidth for connected devices

* Working Modes: 3G/4G, Router, Access Point

* Network Security
SPI Firewall
Access Control

HomeShield Security
--------------------------
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

* Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

* WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

* Ethernet Ports:
3× Gigabit Ports
Supports WAN/LAN auto-sensing

* USB Support: 12 V ⎓ 1.5 A

* Buttons: Reset Button

* Ports and Connections
- 2 × 3G/4G External Antenna Ports

- Compatibility
4G:
FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/80
0/700 MHz)
TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)
3G:
DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

* Protocols
IPv4
IPv6

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: QoS by Device

* Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
UPnP

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS: TP-Link

* Management: Deco App

* WiFi Transmission Power
CE:
≤20 dBm (2.4GHz)
≤23 dBm (5GHz)

* Dimensions (W×D×H): 4.13 × 4.13 × 6.57 in(105 × 105 × 167mm)

* Certification: CE, RoHS

* Package Contents
1-pack
1 Deco X20-4G unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
2 SMB to SMA Adapters

2-pack
1 Deco X20-4G unit + 1 Deco X20 unit
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide
2 SMB to SMA Adapters

3-pack
1 Deco X20-4G units + 2 Deco X20 units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide
2 SMB to SMA Adapters

* System Requirements
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

* Certifications: CE, FCC, IC, RoHS, JPA, JRF, VCCI

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
