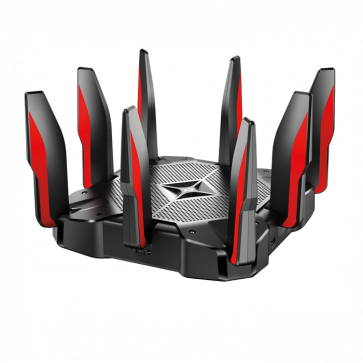

TP-Link Archer C5400X AC5400 MU-MIMO Tri-Band Gaming Router
* TP-link AC5400 MU-MIMO Gaming Router
* Tri-band Wi-Fi speeds up to 5400 Mbps
* WiFi 802.11a/b/g/n/ac, 802.3ab
* 8 external and detachable antennas
* Frequency: 2.4GHz and 5GHz
* Working Mode: Router Mode or AP Mode
Availability: In stock
TP-Link Archer C5400X Gaming Router Highlights:
Wi-Fi Made for Gamers
-------------------------------------------
Dominate the competition with Wi-Fi made for gamers and gaming families
Battle-Tested Processing
-------------------------------------------
1.8 GHz 64-bit quad-core CPU, three co-processor and 1 GB RAM
Prioritized Performance
-------------------------------------------
Set the QoS engine to gaming mode to keep your connection fast when everyone is online
Connect More Devices
-------------------------------------------
Tri-band Wi-Fi speeds up to 5400 Mbps over one 2.4 GHz (1000 Mbps) and two 5 GHz (2167 Mbps) bands*
Adept Multi-Tasking
-------------------------------------------
MU-MIMO and Airtime Fairness serve multiple connections and distribute Wi-Fi and optimize performance**
Far-Reaching Coverage
-------------------------------------------
RangeBoost strengthens reception and beamforming sends targeted Wi-Fi to keep devices connected at farther distances than other routers*
Doubled Wired Speeds
-------------------------------------------
Link Aggregation teams two of the eight Gigabit LAN ports or one LAN with the WAN port to double connection speed
Comprehensive Security
-------------------------------------------
Powerful antivirus works to protect all your devices from cyber threats with a free lifetime subscription of HomeCare
TP-Link Archer C5400X AC5400 Tri-Band Gaming Router Specifications:
Hardware Features
-------------------------------------------
Processor: 1.8GHz quad-core CPU and three co-processors
Standards and Protocols: 802.11a/b/g/n/ac, 802.3ab
Interface
- 8 x 10/100/1000Mbps LAN Ports
- 1 x 10/100/1000Mbps WAN Port
- 2 x USB 3.0 Ports
Button:
- 1x Power
- 1x Wi-Fi On/Off
- 1x WPS
- 1x Reset
- 1x LED On/Off
LED Panel: 1x LED with multiple state
Weight:
- 3.3lb(with antennas)
- 2.65lb(without antennas)
- 1.5kg(with antennas)
- 1.2kg(without antennas)
Dimensions( W x D x H ):
- 11.3 X 11.3X 7.2 in.(with antennas)
- 9.5X9.5X2.2 in.(without antennas)
- 288 x 288 x 184mm(with antennas)
- 240.6 x 240.6 x 55.4mm(without antennas)
Antenna: 8 external and detachable antennas
Wi-Fi Chipset Features
- MU-MIMO
- Beamforming
- Airtime Fairness
- RangeBoost
- NitroQAM
Wireless Features
-------------------------------------------
Signal Rate
- 1000Mbps @ 2.4GHz
- 2167Mbps @ 5GHz
- 2167Mbps @ 5GHz
Software Features
-------------------------------------------
Management
- Tether App
- Andriod 4.1 or higher
- iOS 8 or higher
System Tools
- Time Settings
- Diagnostics
- Fw OTA Upgrade
- Config backup/restore
- Administration
- Syslog
- Statistics
- LED Control
Basic Function
- Network Map (Internet Status / Client List / Speedtest)
- Internet Settings
- Wireless Settings
- USB Sharing Settings (USB Storage Sharing / FTP Server / Media Server)
- HomeCare (Parental Control / Antivirus / QoS)
- Guest Network Settings
- TP-Link Cloud Settings
- Multiple Languages
Protocols: IPv4, IPv6
Advanced Functions
- Working Mode (Router Mode or AP Mode)
- Wireless Schedule
- Time Machine
- TP-Link DDNS
- Parental Controls/Antivirus/QoS
- IPv6
- VPN Server (OpenVPN and PPTP Servers)
- NAT Forwarding (DMZ / UPnP)
- Link Aggregation (WAN / LAN)
- Airtime Fairness
- Smart Connect
- Portal Authentication for Guest Wi-Fi
Security
-------------------------------------------
Access Control:
- Malicious Content Filter
- Intrusion Prevention System
- Infected Device Quarantine
Access Control: Device-based whitelist/blacklist
Wi-Fi Security
- Open
- WEP
- WPA-PSK
Others
-------------------------------------------
Certifications: FCC、CE、DFS、VCCI、JRF、JPA、RoHS
Power Supply: 100-240V 50/60Hz
Environment:
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
