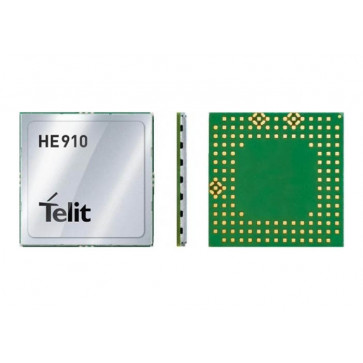

Telit HE910-DG
* Telit 3G UMTS Module
* Form factor: LGA
* HSPA+ DL 21Mbps, UL 5.76Mbps
* No voice, Support GPS and Rx-Diversity
* Support Quad Band GPRS and EDGE
Availability: In stock
Telit HE910-DG is an LGA data only module with global band coverage supporting HSPA+ data throughput speeds. It could achieve download speed up to 21Mbps and upload speed to 5.7Mbps. It also has built-in GPS/GNSS functionality.
Due to its low profile, low power consumption, and advanced connectivity features, Telit HE910-DG is particularly suitable for applications such as mobile computing devices, PDAs, smartphones, tablet PCs and consumer electronics in general, both for business and personal life.
Telit HE910-DG cellular module Technical Specifications:
* Wireless Technologies: 3G, GPS
* Family Format xE910
* Form factor: LGA
* 3G Frequency Bands: 1900, 2100, 800, 850, 900, AWS 1700
* HSPA+ data up to 21.0 Mbps downlink / 5.76 Mbps uplink
* Quad Band GPRS and EDGE
* 3GPP release 7 compliant
* Voice: No
* GPS: Yes
* Rx-Diversity: Yes
* Fallback: Fallback 2G
* Power Supply: 3.8V
* Serial port multiplexer 3GPP TS27.010
* SIM application Tool Kits 3GPP TS 51.014
* Built in UDP/TCP/FTP/SMTP stack
* IP stack with TCP and UDP protocol
* eCall compliant
* Standard and extended AT command set
* Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit custom AT commands
* Operating Temperature: -40°C to +85°C
* Dimensions: 28.2 x 28.2 x 2.2 mm
* Available for AFRICA, APAC, Australia/NZ, EMEA, GLOBAL, KOREA, LATIN AMERICA, NORTH AMERICA, RUSSIA
* Certification: CCF Level 2, CDMA Carrier Approvals, FCC, IC, RoHS
