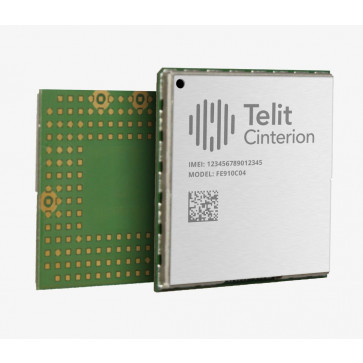

Telit Cinterion FE910C04 5G Rel 17 RedCap Module

Telit Cinterion FE910C04 is a new 5G industrial grade, rugged wireless module with enhanced uplink performance, power saving features, and with LTE Cat 4 fallback for best coverage. It enables 5G mid-speed connectivity relying on the latest 3GPP Release 17 RedCap technology. It levels up performance and efficiency compared to LTE, promising the highest level of flexibility by offering customers to move to a secure 5G future easily.

Telit Cinterion FE910C04 module relies on the latest 3GPP Release 17 Redcap technology, features a compact, industrial grade, rugged design and is suitable for global use with fallback to LTE Cat.4 for best possible coverage.

* Global and regional SKUs and an optional eSIM onboard for seamless 5G connectivity

* Secure by design, strengthened core functions for improved end-to-end security

* Added interfaces for maximizing platform leverage

* Powered by Telit Cinterion's value added services, encompassing NExT™ data plans, connectivity activation, AppZone processing and OneEdge™ services

Key Benefits:

* Global design for full flexibility and longevity with 5G technology

* Embedded Processing enabled by Appzone and support for mulitple connectivity and device management options with the onboard eSIM and Telit Cinterion OneEdge

* Security by design, securing devices and device-to-cloud

* Improved operational efficiency and precise GNSS positioning with support for L1 and L5 frequencies and a dedicated antenna port

* Applications:
- Cellular Router and Gateways
- Fixed Wireless Access (FWA)
- Connected Healthcare
- Video Surveillance

Telit FE910C04 5G RedCap Module Specifications:

* Product type: 5G wireless IoT module

* Form factor: 181-pin LGA interface

* Telit FE910C04-WW
- Target Market: Worldwide
- 5G FR1: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n53, n66, n70, n71, n77, n78, n79
- LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71

* Telit FE910C04-NA
- Target Market: North America
- 5G FR1: n2, n5, n7, n12, n14, n17, n25, n30, n38, n41, n48, n53, n66, n70, n71, n77, n78
- LTE: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B30, B38, B40, B41, B41, B42, B43, B48, B66, B71

* Telit FE910C04-EA
- Target Market: EMEA, APAC
- 5G FR1: n1, n3, n5, n7, n8, n20, n28, n40, n38, n41, n77, n78, n79
- LTE: B1, B3, B5, B7, B8, B18, B19, B20, B28, B38, B40, B41, B42, B43

* Data rates:
- 5G Sub.6 FDD and TDD operation in 5G NR Standalone
– DL: 220 Mbps
– UL: 100 Mbps
LTE Cat 4
– DL: 150 Mbps
– UL: 50 Mbps

* Rx Diversity and MIMO DL 2×2

* VolTE/VoNR Support

* SMS over IMS

* Built in UDP/TCP/FTP/SMTP stack

* IPv4/IPv6 Stack

* Control via AT commands according to 3GPP

* TS 27.005, 27.007 and Telit Custom AT Commands

* SIM application Tool Kit 3GPP TS 51.014

* OMA-DM Telit Software Management

* Simultaneous support for GPS, GLONASS, Beidou, Galileo, QZSS

* Regulatory/Industry Certifications: FCC, CE/RED, ISED, RCM, NCC, JATE-TELEC, GCF/PTCRB

* Carrier Certifications: AT&T incl. FirstNet, TMOUS, VzW, Vodafone, Telstra, KDDI, NTT Docomo, Softbank

* Electrical specifications:
- USB 2.0 HS / HSIC interface up to 480 Mbps
- PCIe Gen2.0, also for external WiFi/BT connectivity
- SGMII for external ethernet transceiver
- Serial/peripheral interfaces – SPI, I2C, UART
- Audio interface – I2S/PCM
- GPIOs
- 2x Dual voltage 1.8/3V USIM interfaces
- Optional eSIM
- RF pad, RX Div. & MIMO pad
- GNSS pad
- Supply Voltage Range: 3.4 – 4.2V

* Voice： Yes

* Dimensions: 28.2 x 28.2 x 2.2 mm

* Operating Temperature Range: -40° C to +85°C

* Drivers
- Drivers for Windows® 11
- Driver for Linux
- Android RIL
