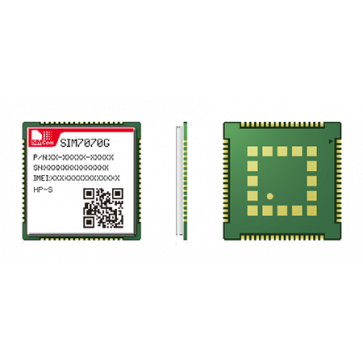

SIMCOM SIM7070G-HP-S LTE Cat-M/Cat-NB2 Module

SIMCOM SIM7070G-HP-S is a 3GPP NTN (non-terrestrial network) satellite communication module which supports 3GPP Rel-17 (loT-NTN) at L-band (B255) and S-band (B256/B23) frequencies for satellite communications. Which supports wireless communication modes of Cat-M/Cat-NB2.

Employ satellite connectivity solutions that work with any satellite network globally using the 3GPP Rel.17 5G IoT-NTN protocol.

SIMCOM SIM7070G-HP-S adopts LCC+LGA form factor and has a compact size of 24mm*24mm which makes it ideal for compact products design.

SIMCOM SIM7070G-HP-S has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc. The SIM7070G-HP-S is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.

SIMCOM SIM7070G-HP-S Module Specifications:

* Target region: Europe/NorthAmerica

* Form Factor: LCC, 68PIN

* Dimensions(mm): 24*24*2.3

* Frequency Bands
- Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66
- Cat-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
- IoT-NTN
S-Band: B23/ B256
L- Band: B255

* LTE RF Power Class: Class 3 (Typ. 23dbm)

* GNSS: GPS/ GLONASS/ BeiDou/ Galileo/ QZSS

* Temperature: -40℃ ~ +85℃

* Supply Voltage Range(V): 3.0~ 4.6, typical 3.8

* Power Consumption
@PSM(uA): 3.8uA @3.8V
@Sleep(mA): 0.45mA @3.8V
@Idle(mA): 13.7mA @3.8V

* Data Transfer
- IoT-NTN Data Rate(kbps): 250(DL)/200(UL)
- Cat-M Data Rate(Kbps): 589(DL)/1119(UL)
- Cat-NB Data Rate(Kbps): 127(DL)/158.5(UL)

* Software Features
- Protocol: TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/LWM2M/COAP/MQTT
- FOTA: ●
- Embedded AT: ●
- Firmware Upgrade: USB/FOTA

* Interfaces
- SIM Card: 1.8V
- UART: ●
- USB: ●
- PCM/I2S: ●
- ADC: ●
- SPI: ●
- I2C: ●
- Embedded SIM

* Certification
- Regulatory: RoHS/REACH/KC/RCM/CE/GCF
- Carrier: Telstra*/GU+*
- Satellite: Skylo
