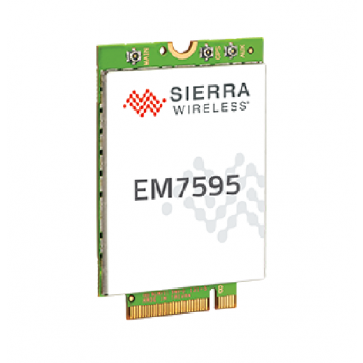

Sierra Wireless EM7595 LTE Cat12 Mini PCIe Module

Sierra Wireless EM7595 is a new LTE Cat-12 embedded module which delivers up to 600 Mbps downlink and 150 Mbps uplink high-speed connectivity. The Sierra EM7595 supports 27 worldwide LTE bands, including CBRS and FirstNet, and is ideal for global deployment with approvals from multiple NAM, EMEA, and APAC carriers. Supporting USB 2.0 and USB 3.0 interfaces, the Sierra EM7595 offers an easy upgrade path to global LTE-Advanced high-speed cellular networks. Sierra EM7595 is ideal for public safety, industrial M2M, and mobile computing solutions.

Sierra Wireless EM7595 4G module Specifications:

* Product type: 4G wireless module

* Chipset: Qualcomm

* Target region: Global

* 4G Category: LTE Cat-12

* 4G Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B29, B32, B38, B39, B40, B41, B42, B43, B48, B66, B71

* 4G Peak Speeds: download rate up to 600Mbps, upload rate up to 150Mbps

* GNSS: GPS, Galileo, Glonass, Beidou

* Firmware: Secure boot, Pre-certified firmware

* System Drivers: Windows® 10, Windows® 11, Linux (Driver: Open Source), Android RIL

* Interfaces:
- USB: USB 3.0, USB 2.0 High Speed
- PCIe: PCIe generation 3 (or 2), 1 lane
- SIM interface 1.8V/3V: 2

* Dimensions: 42x30x2.3mm

* Antenna: Diversity, MIMO, GNSS Bias, Connectors: Main, Aux/GNSS, GNSS

* Temperature Range: -30°C / +70°C, -40°C / +85°C

* Carrier: AT&T (FirstNet), Verizon, T-Mobile, SouthernLINC, Orange, Telstra, NTT Docomo

* Regulatory: FCC, IC, PTCRB, GCF, EU RED, JATE/Telec

* Embedded SIM: Onboard consumer eUICC (optional)
