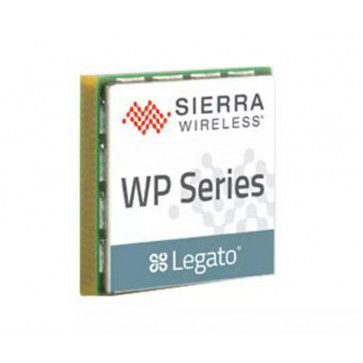

Sierra Wireless AirPrime WP7603
* Category: LTE Cat.4 embedded module
* CF3 Form Factor: LGA
* Snap-in socket option: Yes
* Chipset: Qualcomm
* Target Region: Americas
* Support LTE frequency bands: B2, B4, B5, B12
* Data Speed: DL 150mbps, UL 50mbps
* Location Service: GPS, Galileo, Glonass, Beidou
* Approved by US carrier AT&T, T-Mobile
Availability: In stock
Product Downloads
Sierra Wireless AirPrime WP7603 is a new LTE Category 4 module on LGA CF3 form factor targeted at Americas region. AirPrime WP7603 supports LTE frequency band 2/4/5/12 and get approval from US carrier AT&T and T-mobile. It could achieve download speed up to 150mbps and upload speed to 50mbps. And it could support GPS, Galileo, Glonass, Beidou location service. The Sierra WP7603 is similar to AirPrime WP7603-1, but WP7603-1 supports LTE Cat.1.
Sierra AirPrime WP7603 Specifications:
* Category: LTE Cat.4
* CF3 Form Factor: LGA
* Chipset: Qualcomm
* Snap-in socket option: Yes
* Target Region: Americas
* Support LTE frequency bands: B2, B4, B5, B12
* Support 3G frequency bands: HSPA+, UMTS (B2, B4, B5)
* Data Speed: DL 150mbps, UL 50mbps
* Location Service: GPS, Galileo, Glonass, Beidou
* Application Core: ARM Cortex- A7 (1.3GHz)
* Telecom Core: Dual QDSP6 (600MHz)
* Embedded Software: Secure boot, Pre-cetified firmware
* Embedded Platform: Legato open source
* Linux Distribution: Yocto, Long-term supported Linux Kernel (LTSI)
* Audio Codecs:
- Digital audio
- PCM/12S
- Codec: HR, FR, EFR, AMR
- Echo cancellation & noise reduction
- DTMF
* USB Drivers: Windows 7 and 8, Linux
* Interfaces:
- UART x 2
- USB x 1
- 12C x 1
- ADC x 4
- GPIO x 18
- Tx ON Indicator x 1
- SIM Interface 1.8V/3V x 1
* Dimensions: 22 x 23 x 2.5mm
* Antenna: Diversity, MIMO
* Temperature range: -40°C to +85°C (Industrial Grade)
* Approvals: FCC, IC Regulatory
* Carrier Approval: AT&T, T-Mobile
* Optional Ready-to-Connect Sierra Wireless embedded SIM
* Cloud Services:
- Free Unlimited FOTA upgrades
- Device Management option
- Application Enablement option
- Connectivity Management option
