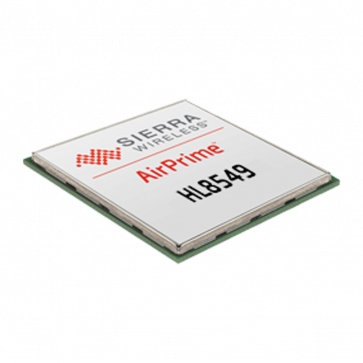

Sierra Wireless AirPrime HL8549

* Compact CF3 Form Factor


* Low power consumption


* Enhanced RF performance


* Worldwide coverage


* GNSS (GPS and GLONASS)


* Intelligent pin-to-pin compatibility

Sign up for price alert

Availability: In stock

$159.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Sierra Wireless AirPrime HL8549 HSPA module utilises the compact HL series LGA package. With its industrial temperature range, penta-band HSPA and GNSS (GPS + GLONASS) support, the HL8549 is an ideal platform to fulfil your essential connectivity requirements.

The HL series form factor allows direct soldering of the LGA for higher volume applications, while a snap-in socket is available for lower volumes and prototyping. Device firmware can be upgraded over the air using Sierra Wireless's AVMS service.


Sierra Wireless AirPrime HL8549 Hightlights:

* Compact CF3 Form Factor

* Low power consumption

* Enhanced RF performance

* GNSS (GPS and GLONASS)

* Worldwide coverage

* Intelligent pin-to-pin compatibility

Sierra AirPrime HL8549 Technical Specifications:


* Form Type: CF3 SMD LGA package

* Snap-in Socket Option: no

* Shieldcan Technology: Yes

* 3G HSPA Frequency Band: B1/B2/B5/B6/B8/B19

* 2G EGDE/GSM/GPRS Frequency Band:850/900/1800/1900MHz

* Regulatory Approvals: Anatel, CE, FCC, GCF, IC, PTCRB

* Carrier Approvals: Vivo

* Power Consumption
- Power supply for extended battery life: 2.8V
- Alarm: 40μA
- LTE Standby and Idle(Typ Sleep): 1.2mA
- HSxPA max: 475mA


* Audio
- Digital Audio
- Codec: HR, FR, EFR, AMR
- Echo Cancellation & Noise Reduction
- DTMF

* Interfaces
- UART (8)
- USB (1)
- ADC (2)
- GPIO (8)
- Flash LED Output (1)
- PWM (Buzzer) (1)
- Tx Burst Indicator (1)
- SIM interface 1.8V/3V (DSSS Support) (1)

* Location Service: GPS & Glanass Sirf V

* Internet Services: TCP + UDP + FTP + HTTP + HTTPS

* Software and Drivers:
- Secure Boot
- Pre-Certified Firmware
- Linux Driver: Standard ECM
- Android RIL

* Cloud Services
- Free Unlimited FOTA Upgrades
- SIM Management Option
- Device Management Option
- Data Storage/ Application Enablement Platform Option


* Operating Temperatures Range: Industrial Grade -40°C to +85°C

* Dimensions: 22 x 23 x 2.5 mm
