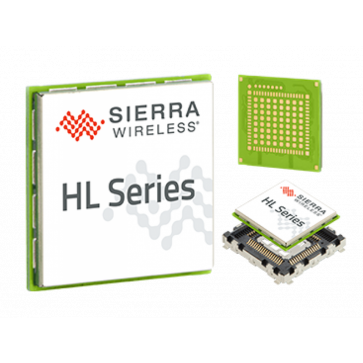

Sierra Wireless AirPrime HL8518

* Compact CF3 Form Factor


* Low power consumption


* Enhanced RF performance


* GNSS (GPS and GLONASS)


* Worldwide coverage


* Snap-In Socket available


* Intelligent pin-to-pin compatibility

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$159.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Sierra Wireless AirPrime HL8518 is an industrial grade Embedded Wireless Modules that provides voice and data connectivity on GPRS, EDGE RX, WCDMA, HSDPA and HSUPA networks.

Sierra Wireless AirPrime HL8518 Hightlights:

* Compact CF3 Form Factor

* Low power consumption

* Enhanced RF performance

* GNSS (GPS and GLONASS)

* Worldwide coverage

* Snap-In Socket available

* Intelligent pin-to-pin compatibility

Sierra AirPrime HL8518 Technical Specifications:


* Form Type: CF3 SMD LGA package

* Snap-in Socket Option: Yes

* Shieldcan Technology: Yes

* 3G HSPA Frequency Band: B1/B8

* 2G EGDE/GSM/GPRS Frequency Band:900/1800MHz

* Regulatory Approvals: FCC, CE

* Carrier Approvals: Vodafone

* Power Consumption
- Power supply for extended battery life: 2.8V
- Alarm: 50μA
- LTE Standby and Idle(Typ Sleep): 1mA
- LTE max: 460mA

* Audio
- Digital Audio
- Codec: HR, FR, EFR, AMR
- Echo Cancellation & Noise Reduction
- DTMF

* Interfaces
- UART (8)
- USB (1)
- ADC (2)
- GPIO (8)
- Flash LED Output (1)
- PWM (Buzzer) (1)
- Tx Burst Indicator (1)
- SIM interface 1.8V/3V (DSSS Support) (1)

* Internet Services: TCP + UDP + FTP + HTTP + HTTPS

* Software and Drivers:
- Secure Boot
- Pre-Certified Firmware
- Linux Driver: Standard ECM
- Android RIL

* Cloud Services
- Free Unlimited FOTA Upgrades
- SIM Management Option
- Device Management Option
- Data Storage/ Application Enablement Platform Option


* Operating Temperatures Range: Industrial Grade -40°C to +85°C

* Dimensions: 22 x 23 x 2.5 mm
