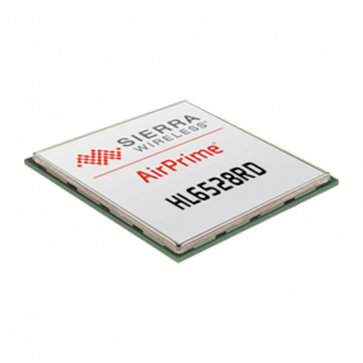

Sierra Wireless AirPrime HL6528RD

* Compact CF3 Form Factor


* Low power consumption


* Enhanced RF performance


* Worldwide coverage


* GNSS (GPS and GLONASS)


* Snap-In Socket available


* Intelligent pin-to-pin compatibility

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$159.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

The compact, low power AirPrime HL6528RD module from Sierra Wireless is a quad band 2G module offering GSM and GPRS communications. With an on-board IP stack, the HL6528 GPRS module provides a simple interface to set up IP data transfers. The HL6528RD also supports inbound and outbound SMS messaging and voice communications. Its compact CF3 footprint allows it to be soldered directly to PCB or fitted to a socket.


Sierra Wireless AirPrime HL6528RD Hightlights:

* Compact CF3 Form Factor

* Low power consumption

* Enhanced RF performance

* GNSS (GPS and GLONASS)

* Worldwide coverage

* Snap-In Socket available

* Intelligent pin-to-pin compatibility

Sierra AirPrime HL6528RD Technical Specifications:


* Form Type: CF3 SMD LGA package

* Snap-in Socket Option: Yes

* Shieldcan Technology: Yes

* 3G HSPA Frequency Band: N/A

* 2G EGDE/GSM/GPRS Frequency Band:850/900/1800/1900MHz

* Regulatory Approvals: Anatel, CCC, CE, FCC, GCF, IC, NCC, PTCRB

* Carrier Approvals:

* Power Consumption
- Power supply for extended battery life: 2.8V
- Alarm: 35μA
- LTE Standby and Idle(Typ Sleep): 1.3mA
- HSxPA max: 450mA


* Audio
- Digital Audio
- Codec: HR, FR, EFR, AMR
- Echo Cancellation & Noise Reduction
- DTMF

* Interfaces
- UART (8)
- USB (1)
- ADC (2)
- GPIO (8)
- Flash LED Output (1)
- PWM (Buzzer) (1)
- Tx Burst Indicator (1)
- SIM interface 1.8V/3V (DSSS Support) (1)

* Location Service: GPS & Glanass Sirf V

* Internet Services: TCP + UDP + FTP + HTTP + HTTPS

* Software and Drivers:
- Secure Boot
- Pre-Certified Firmware


* Cloud Services
- Free Unlimited FOTA Upgrades
- SIM Management Option
- Device Management Option
- Data Storage/ Application Enablement Platform Option


* Operating Temperatures Range: Industrial Grade -40°C to +85°C

* Dimensions: 22 x 23 x 2.5 mm
