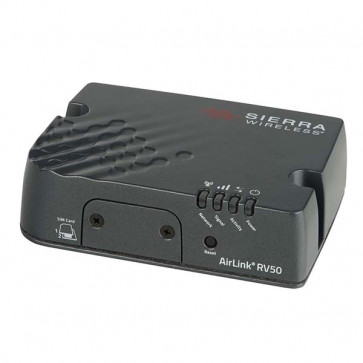

Sierra Wireless Airlink RV50X Industrial Grade LTE Gateway - Unlocked

Sierra Wireless AirLink® RV50X is the industry’s lowest power LTE gateway. Simple to install and easy to manage, the Raven RV50X industrial gateway is designed to connect critical assets and infrastructure. Ideal for industrial-grade applications in energy, utilities and smart-city infrastructure, the Raven RV50X provides real-time remote connectivity for SCADA, distribution management systems and metering.

With LTE coverage on major global networks, Airlink RV50X modem brings the benefits of broadband connectivity to the most challenging environments, where servicing is not an option and power is often scarce. It is the industry’s only fully operational 4G gateway with 2G power consumption. LTE bandwidth makes it a viable alternative to costly wired and wireless technologies, providing a future-proof solution that protects investment.

Features
- LTE performance at 2G power consumption – uses less than 1 watt - LTE Idle Power: 900 mW (75 mA @ 12 VDC)
- Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer
- Most rugged AirLink industrial gateway ever built
- Ideal for solar-powered applications
- Remote management via industry’s best-in-class AirLink Management Service (ALMS)
- Meets industrial-grade certifications including Class 1 Div 2, MIL-STD-810G, IP64 ingress protection
- Supports up to 5 VPN tunnels for secure cellular communications
- Events Engine for alert reporting to third party server platforms
- Application Framework (AAF) offers real-time on board data processing
- GPS for tracking equipment

Supported Frequency Bands:
- LTE: 1900(B2), AWS(B4), 850(B5), 700(B13), 700(B17), 1900(B25)
- WCDMA: 2100(B1), 1900(B2), AWS(B4), 850(B5), 900(B8)
- EV-DO/CDMA: 800(BC0), 1900(BC1), 1700(BC10)
- GSM/GPRS/EDGE: Quad-band
- Industry Approvals: FCC, IC, PTCRB
- Automatic Network Operator Switching based upon SIM Dual SIM Functionality

HOST INTERFACES
- 10/100/1000 Ethernet (RJ45)
- RS-232 serial port (DB-9)
- USB 2.0 Micro-B Connector
- 3 SMA antenna connectors (primary, diversity, GPS)
- Active GPS antenna support
