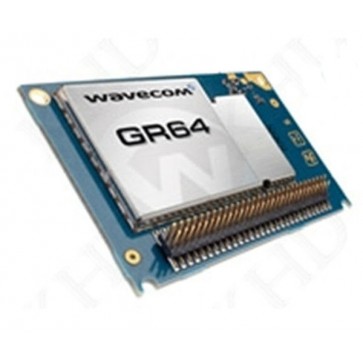

Sierra AirPrime Wavecom GR64 Wireless CPU
* Quad band GSM & GPRS: 850/900/1800/1900 MHz
* Integrated TCP/IP Stack
* Integrated SIM Holder Option Available
* Core processor: ARM7, 32 bit
Availability: In stock
Sierra Wavecom GR64 is ideal for a broad spectrum of applications including fleet and asset management, sales and payment, vending, security and metering. Wavecom GR64 Wireless CPU features an integrated TCP/UDP/IP protocol stack, an industrial-grade temperature range (-30°C to +75°C) and ARM9 based M2mpower script application execution as standard.
Wavecom GR64 Key Features
* Quad band GSM & GPRS: 850/900/1800/1900 MHz
* Integrated TCP/IP Stack
* Integrated SIM Holder Option Available
Sierra GR64 Wireless CPU Technical Specifications:
* Frequency Range (MHz): Quad band GSM: 850/900/1800/1900 MHz
* Core processor: ARM7, 32 bit
* Memory: Internal
* Digital Inputs/Outputs: Up to 12 GPIO, 5 x 5 keyboard
* Communications Interfaces: 2 UART, I2C
* Analogue Interfaces: 4 ADC
* Audio Interfaces: 2 analogue channels, PCM
* Cellular Radio: Quad Band GSM 850/900/1800/1900MHz
* Cellular Data: GSM standard SMS, CSD, GPRS class 10
* Cellular Voice: Quad codec (FR/HR/EFR/AMR)
* Connector: MMCX Female
* Power Supply: 3.2 - 4.5V
* Type Approval
- FCC
- PTCRB
- GCF
- CE
* Environmental: -30°C to +75°C Operating and -40°C to +85°C Storage
* Dimensions/Size: L 50 x W 33 x H 3.3 mm
The GR64 is now end of life, there is a new replaced model Wavecom Q64 available with upgraded functions and better performance.
